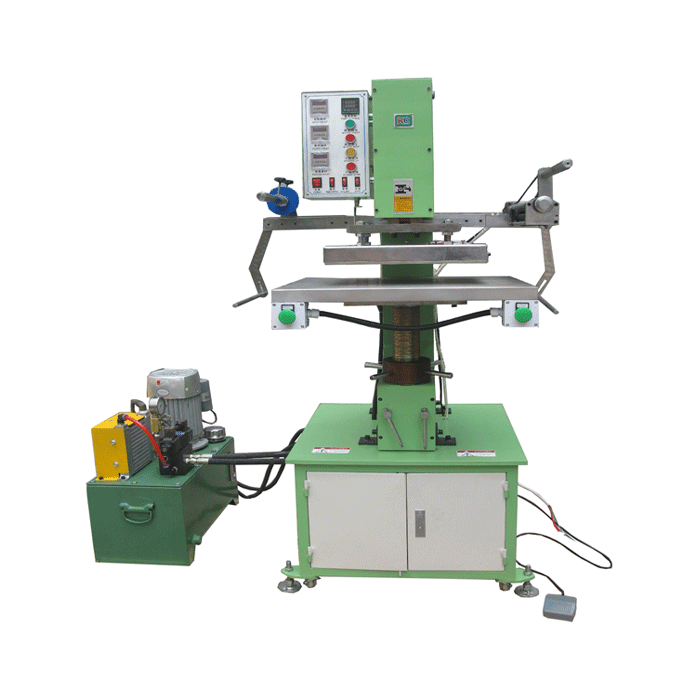

Hydraulic embossing stamping Machine //Structure

Working table

High strength Steel plate , size: 520*800mm.

Stamping Head drive

Hydraulic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up，Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Max Pressure

20T

Hydraulic embossing stamping machine //Usage and characters

Guide

• Gilding - paper, leather, wood, plastic,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
• Hydraulic drive, pressure more large.

Application fields

• Paper Gilding, Leather Impression, Wood ware Baking
• Paper Concave-convex embossing， Cloth hot stamping,
• Plastics Bronzing
• Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
• Woodiness objects baking-burns and Impress;
• Leather bronzing and Molding;
• Paper products concavo indentation.
• Graduated disc of clock bronzing.
• Die-cutting.

Hydraulic embossing stamping Machine //Parameter

Technical parameters

HH-TC4050LPT

Works supply

• 3 Phase 380V Power supply；
• 46# Hydraulic oil

Package list

Package size: 1.16*1.2*1.9m

Gross weight: 780kg;

CBM: 2.6448

Package size:0.75*0.55*0.83mm

Gross weight: 85kg;

CBM: 0.342375Printing

H.S.Code

8443198000

Certificate

CE

Hydraulic embossing stamping machine //Advantage

Function

• Bench made of high strength cast steel forging, has a very high flatness and stability;
• Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
• Relay control program is running, easy operation, easy maintenance;
• Pairs of buttons control the stamping head up and down, security is greatly enhanced;
• Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
• Heating pipe heating, rapid heating, replacement is simple and convenient;
• Heating plate can be removed to facilitate installation and replacement gilt template;
• Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
• Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
• Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
• Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
