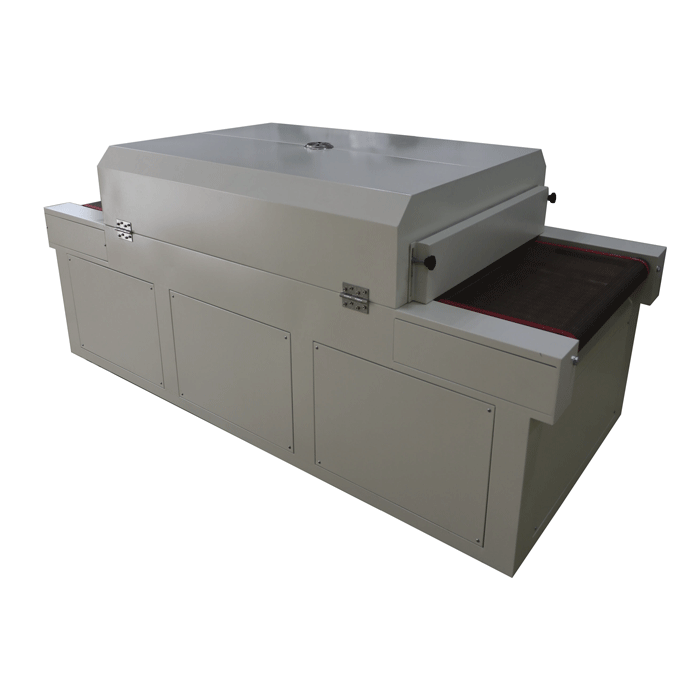

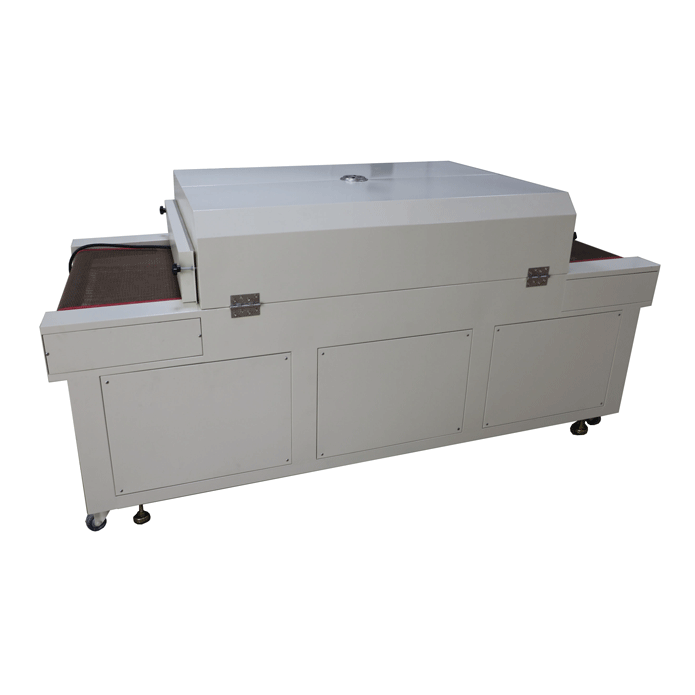

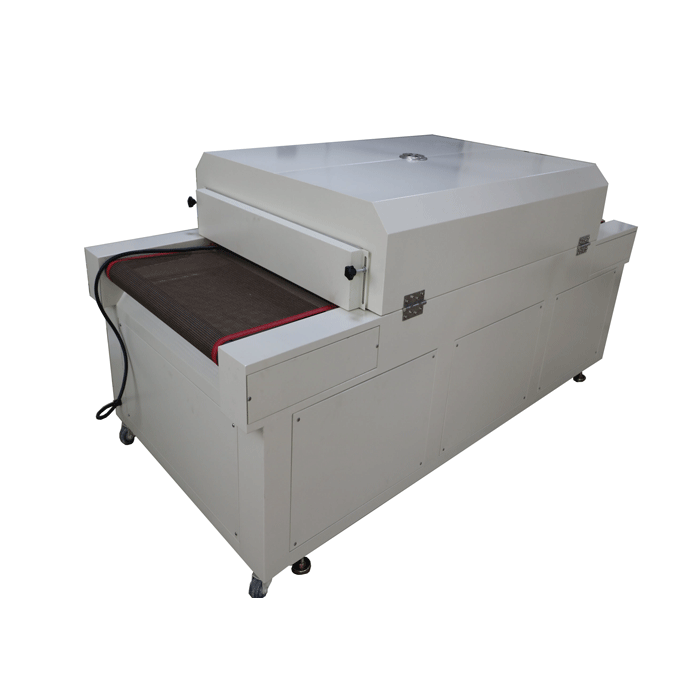

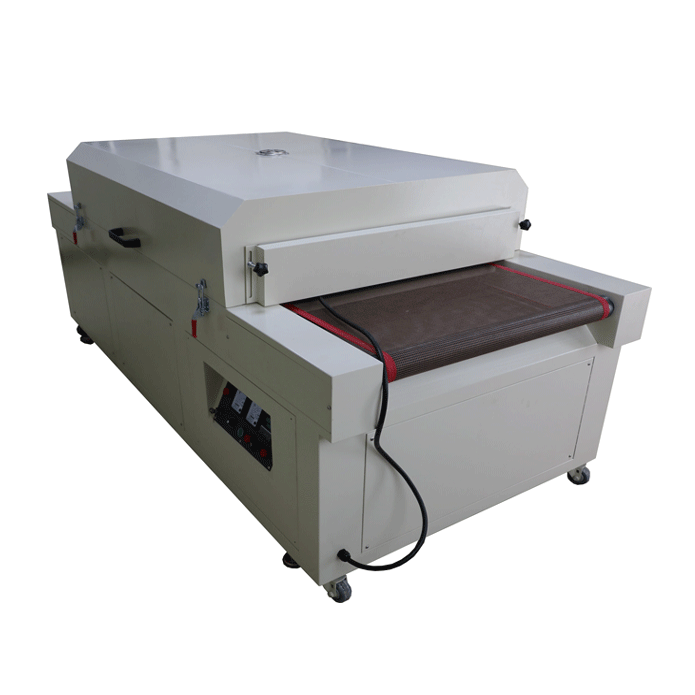

M-80250XIR IR Drying Machine//Usage and characters

Guide

• Used in the field of curing heat-solid ink printed on clothes;
• This machine is suitable for T shirt and most of fabric ;
• Curing some soft materials after coating by roller ;
• Entering mouth adjustable make diffrent objects curing;
• Temperature controlled automatically ensure Objects drying on lower temperature;
• High efficient dryer which is heated bu far-infrared and hot wind.;
• Temperature is controllable. speed of teflon coated conveyor can be adjusted steplessly.
• Suitable for drying printed garment, printed textile, Printed paper and printed film, etc;
• Also use in many occasions of drying or predrying printed or unprinted objects.

Application fields

• Cloth , fabric , Garment
• Electron, Hardware, Auto, Toys, Gifts, Plastics parts，
• Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .
• suitable for solvent-base and heat-set ink.

M-80250XIR IR Drying tunnel //Parameter

Technical parameters

M-80250XIR far-infrared Drying conveyer

• Conveyer width：800mm;
• Total wattage：7.2KW;
• Wind fan wattage：45W/220V*2;
• Conveyer motor wattage：90W/1P/220V;
• ConveyEr speed：0~10m/min;
• Speed adjustment：Stepless;
• Heater Lamp wattage:900W/220V×8pcs;
• Max height of production: 100mm;
• Total Length:2400mm, Heat length: 1500mm;
• Entering length: 450mm Exit elngth: 450mm.

Works supply

• Power： 3 phase 380V.

Package list

Package Dimension:

• 2.7*0.95*1.56m/1pc;
• Gross weight: 280kg;
• CBM: 4.0014

H.S.Code

8443198000

Certificate

CE

M-80250XIR IR Drying tunnel //Advantage

Function

• Made by high temperature conveyer belt;
• Famous brand motor drive,stepless speed adjustment;
• High quality FIR lamp to ensure stabilization temperature;
• Taiwan electron circult controlling and operation simply;
• High percision Pulling roll and running Smoothly;
• Temperature can be adjustable according to diffrent requirments.
• High Drying Efficient-

heated with far-infrared ceramic heating rod and hot wind circuit make printed object dry evenly in the shortest time. Thus save power;

• Heatproof conveyor belt-

telflon coated conveyor belt can work properly and durable in high temperature.

• Conveyor speed controllable-

The conveyor is driven by stepless change speed motor. Therefore, running speed of conveyor can be set arbitrary, Thus, The dryer can dry diffrent thickness object.

• Cover openableheating room-

openable covers on both side of heating room. Ceramic heating rod can be easily replaced by simply opening the cover of heating room.

• Wide range and precision temperature control-

Heating temperature can be set to any temperature between roon temperature to 300 degree. Tolerance of temperature is in +/-5 degree.
