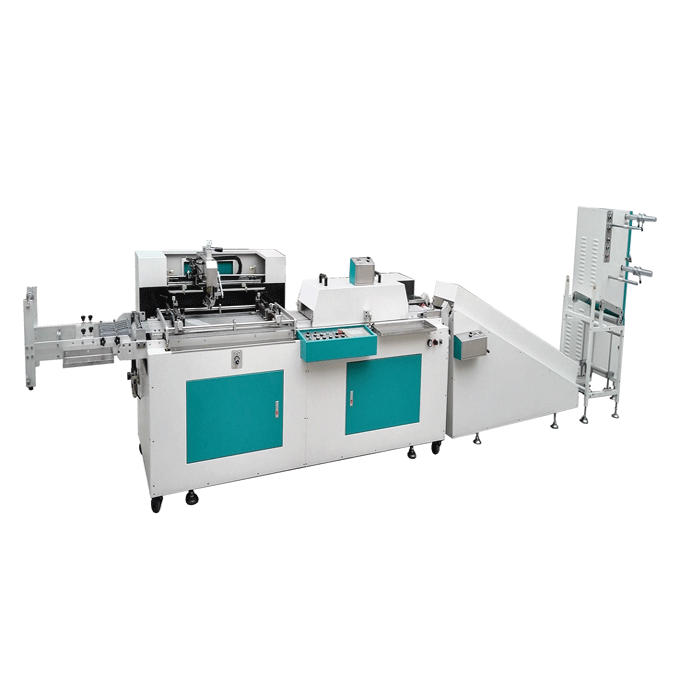

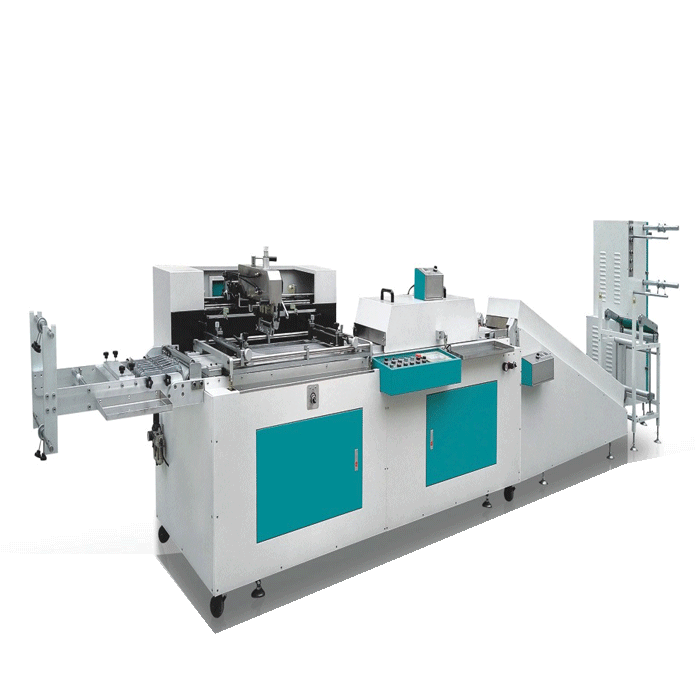

SZD-302RA Full automatically Ribbon screen printing machine//Usage and characters

Guide

• Ribbon generally elongated sub merchandise for indicating the specified position in product features an accessory. Using loose knit nylon, polyvinyl alcohol, polyester, polypropylene, spandex, rayon and other raw materials and weaving, braiding, knitting and other technology formation.
  Monochrome screen is monochrome surfaces automatic screen printing machine for ribbon width 100mm or less, can be a single or a plurality of monochrome printing.
  High printing speed, print quality and stability. Automatic package feeding mode, saving labor intensity, pitch servo control means for printing different pitches graphic.
  Double drying tunnel drying design, greatly improving printing efficiency webbing.

Application fields

• Various clothing trademark monochrome silk webbing;
• Meetings, convention members listed in monochrome silk webbing;
• With flexible features of various fabrics monochrome screen.

SZD-302RA Full automatically Ribbon screen printing machine//Parameter

Technical parameters

• ribbon width: 10-200mm
• Printing stroke: 600mm
• Printing speed : 15M/Min
• Power supply: 3 Phase 380V
• Motor wattage： 1.5kw
• Feeding Motor:375W;
• IR Motor: 60W
• Cool Motor: 5W.
• Net weight： ≈1200kg
• Max Frame dimension: 400×700mm.
• IR wattage: 2KW(1)+2KW(2)
• IR Length: 2000mm

Works supply

• Power： 3 phase 380V；
• 10M Length space for installation

Package list

• Package dimension: 3.4*1.37*1.56m;-2pcs
• Gross weight: 750kg.
• 7.2789

H.S.Code

8443198000

Certificate

CE

SZD-302RA Full automatically Ribbon screen printing machine//Advantage

Function

• That shut down for operating an ink rub net increase, which will help the color adjustment;
• Block printing with vacuum suction function, ribbon positioning is more accurate and reliable;
• High-speed printing, the normal per-minute speeds of up to 15M;
• Which can print up to eight different types of ribbon;
• Double blade design, printing, inking cleaner and reliable;
• All-electric control, no compressed air;
• Automatic feeding, winding tension control;
• Smooth running smoothly, the printing stroke and speed adjustable;
• Taiwan inverter control constant torque operation, to ensure consistent printing results;
• Using IR infrared drying system, printing, drying synchronization is complete;
