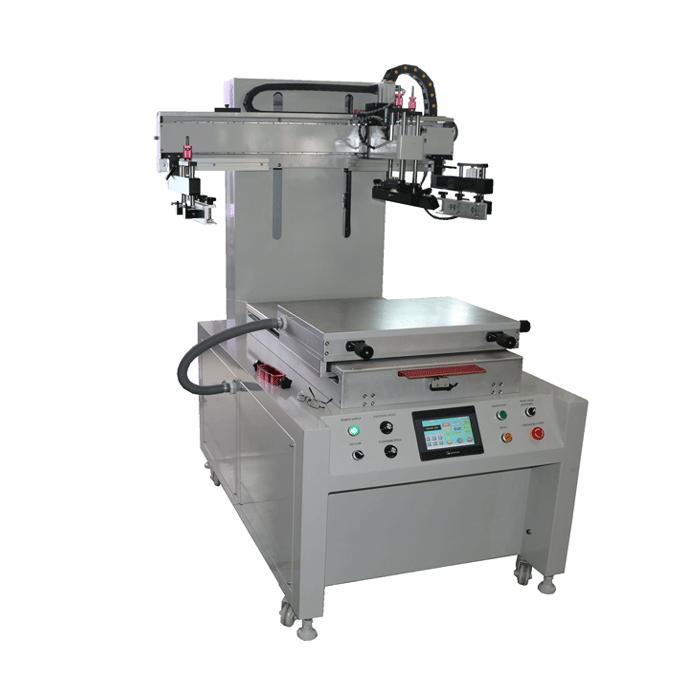

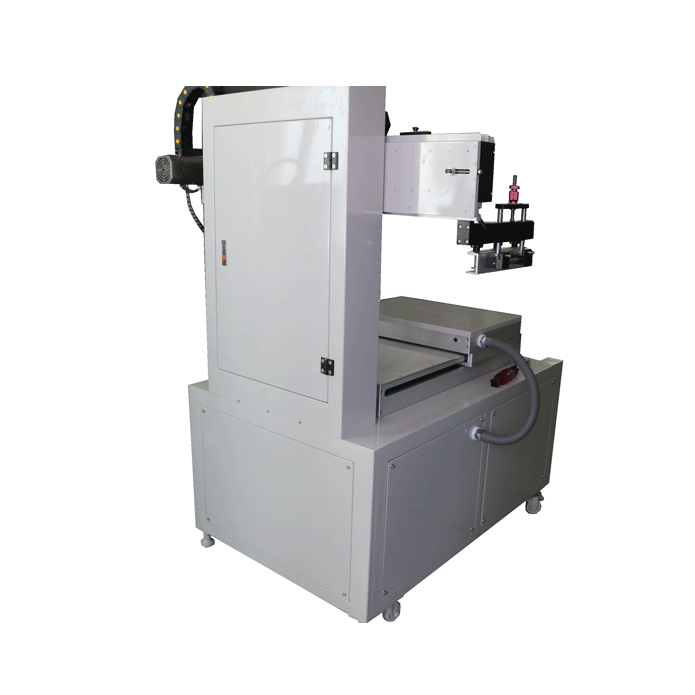

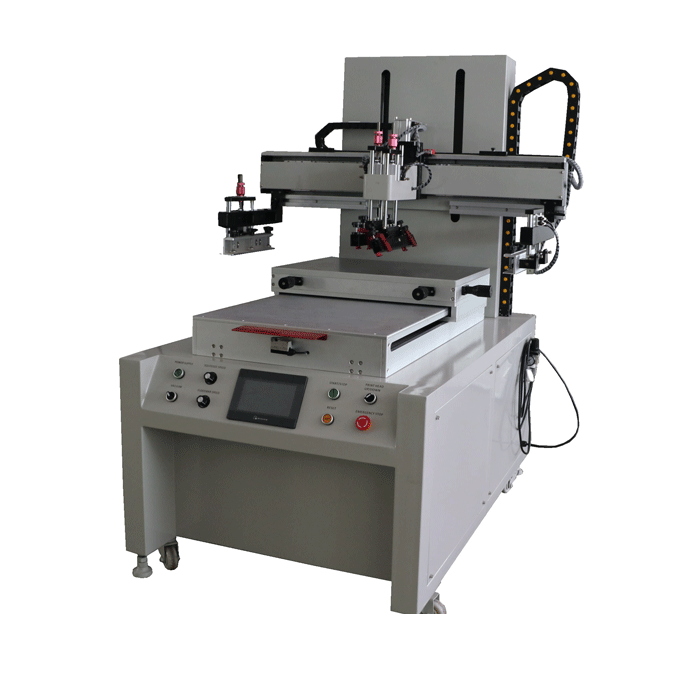

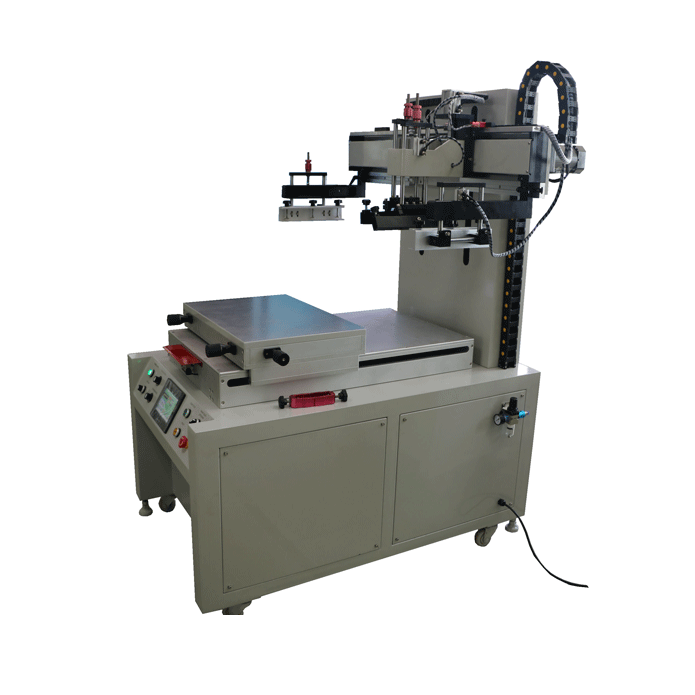

Flat precision servo screen printing machine with vacuum table //Structure

Working table

Vacuum working table, Size: 500*700mm

Actions

Up-down of screen plate

To be printed

• Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision linear guideway

Servo Flat screen printing machine with vacuum table //Usage and characters

Guide

• Fit printing soft and thin products such as paper, plastics film etc；
• With vacuum working table ensure adsorbing object when printing;
• Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
• Also widely used in Glass plate, Machine panel screen printing;
  With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
• Suitable for printing sheet-fed adhesiving sticker;
• Suitable for printing water transfer label and heat transfer label through diffrent process;
• Max Printing area: 400*600mm;
• High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

• Widely used in Glass printing field;
• With UV curing machine, Can finish many UV special printing process for UV package industry.
• Suitable for printing Mobile windows ;
• Suitable for printing water transfer label and heat transfer label through diffrent process;
• The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

Servo Flat screen printing Machine with vacuum table//Parameters

Technical parameters

PS-4060PVHS

PS-5070PVHS

• Printing high：200mm;
• Air ：45Liter/Min;
• Working table dimension:500×700mm;
• Max Frame dimension: 550×800mm;
• Max printing area：400×600mm;
• Max printing speed：700PCS/h ;
• Max Stroke of up-and-down frame:300mm;
• Max stroke of Squeegee:600mm;
• Squeegee motor wattage: 200W;
• Table Precision: +-0.03mm.

• Printing high：200mm;
• Air ：45Liter/Min;
• Working table dimension:600×800mm;
• Max Frame dimension: 650×950mm;
• Max printing area：500×700mm;
• Max printing speed：700PCS/hr ;
• Max Stroke of up-and-down frame:300mm;
• Max stroke od Squeegee:700mm;
• Squeegee motor wattage: 200W;
• Table Precision: +-0.03mm.

Works supply

• 110V-220V Power supply；
• 5-7Barcompress air；

Package parameters

• Package dimension: 1.51×1.26×1.83m
• Gross weight: 541kg;
• CBM: 3.2512

H.S.CODE

8443192190

Certificate

CE

Servo Flat screen printing Machine with vacuum table //Advantage

Function

• High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
