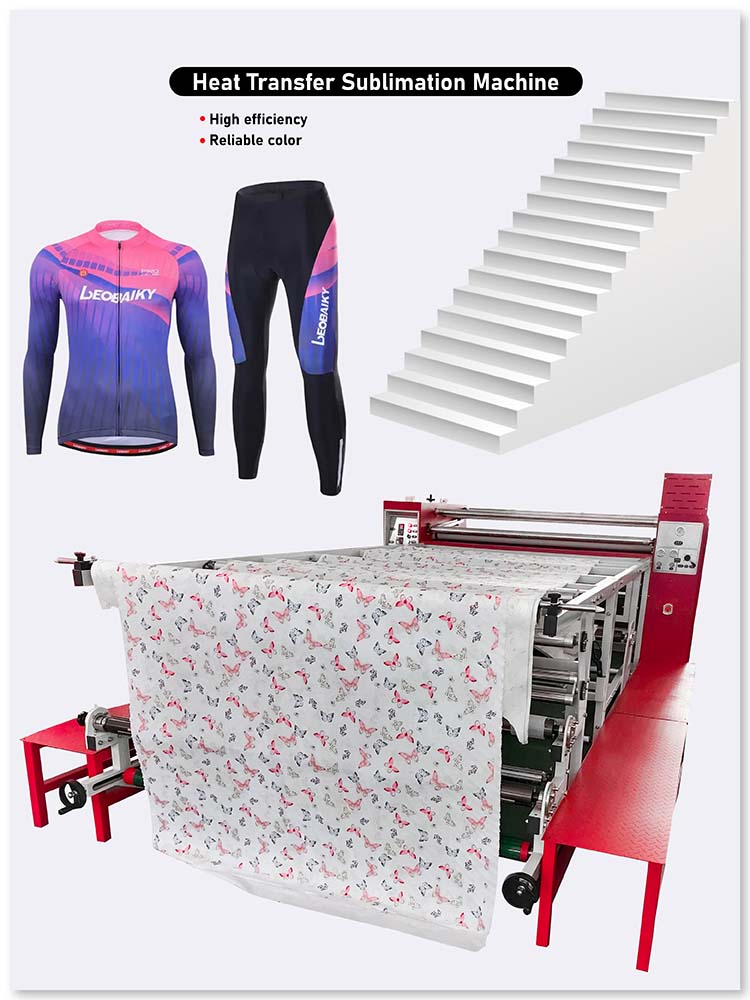

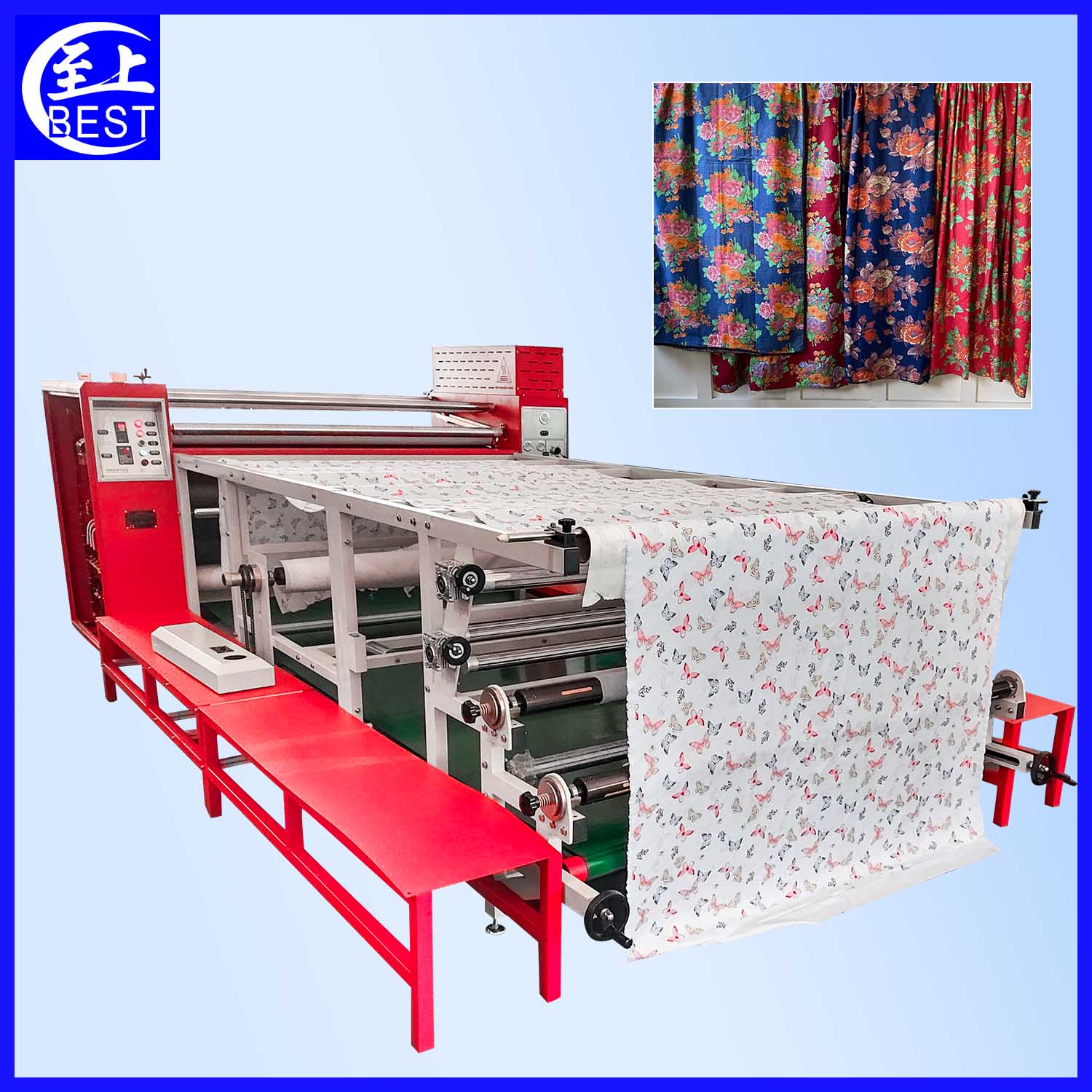

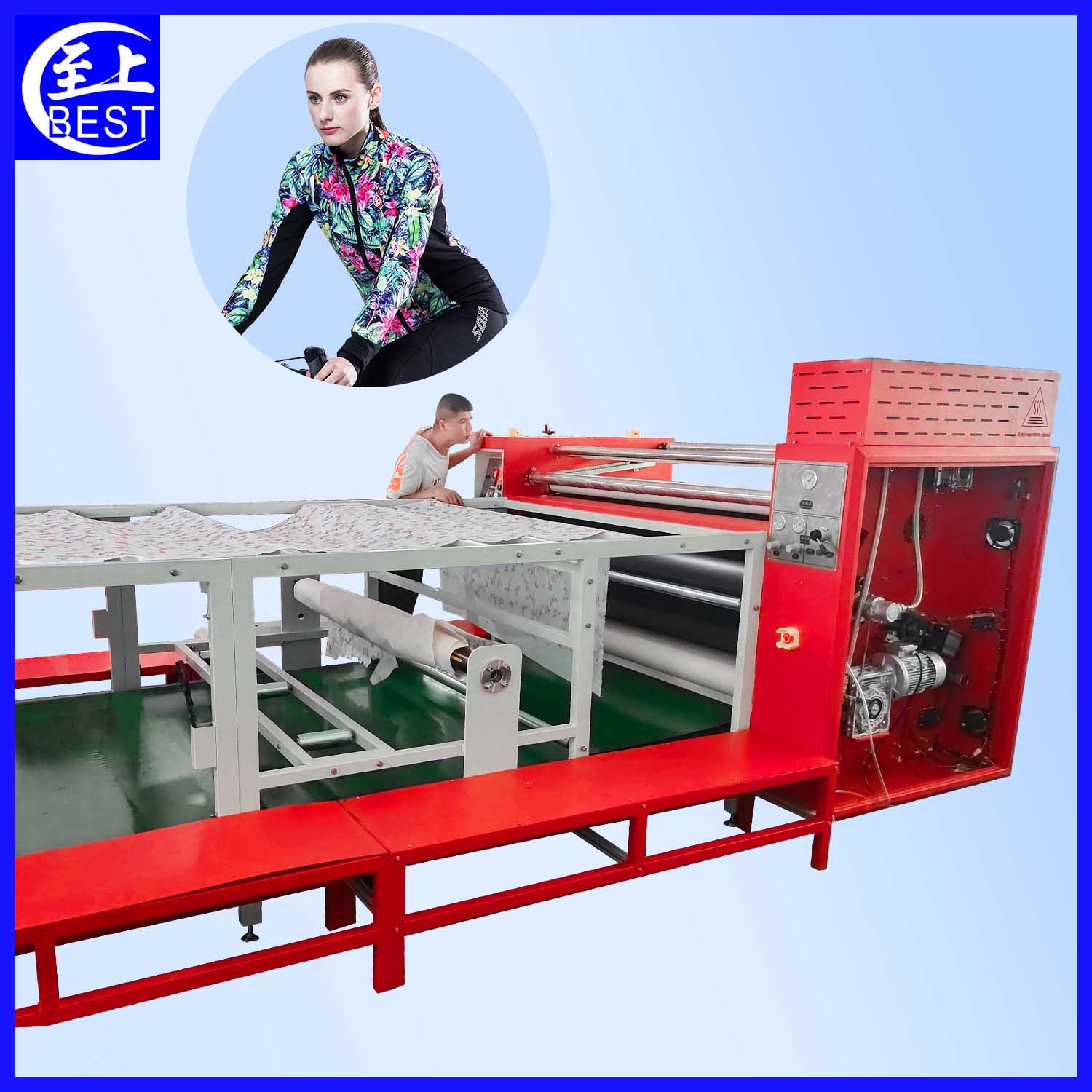

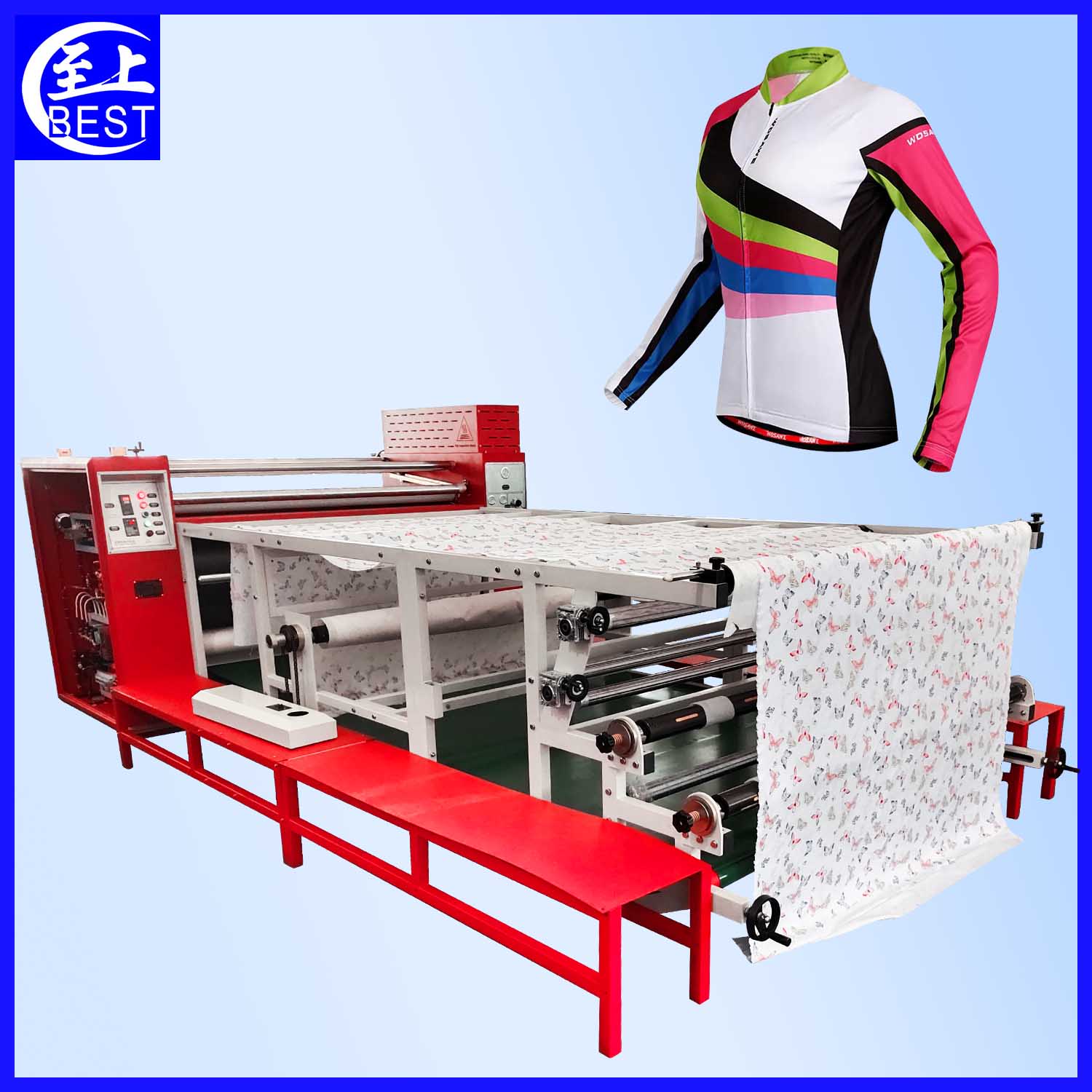

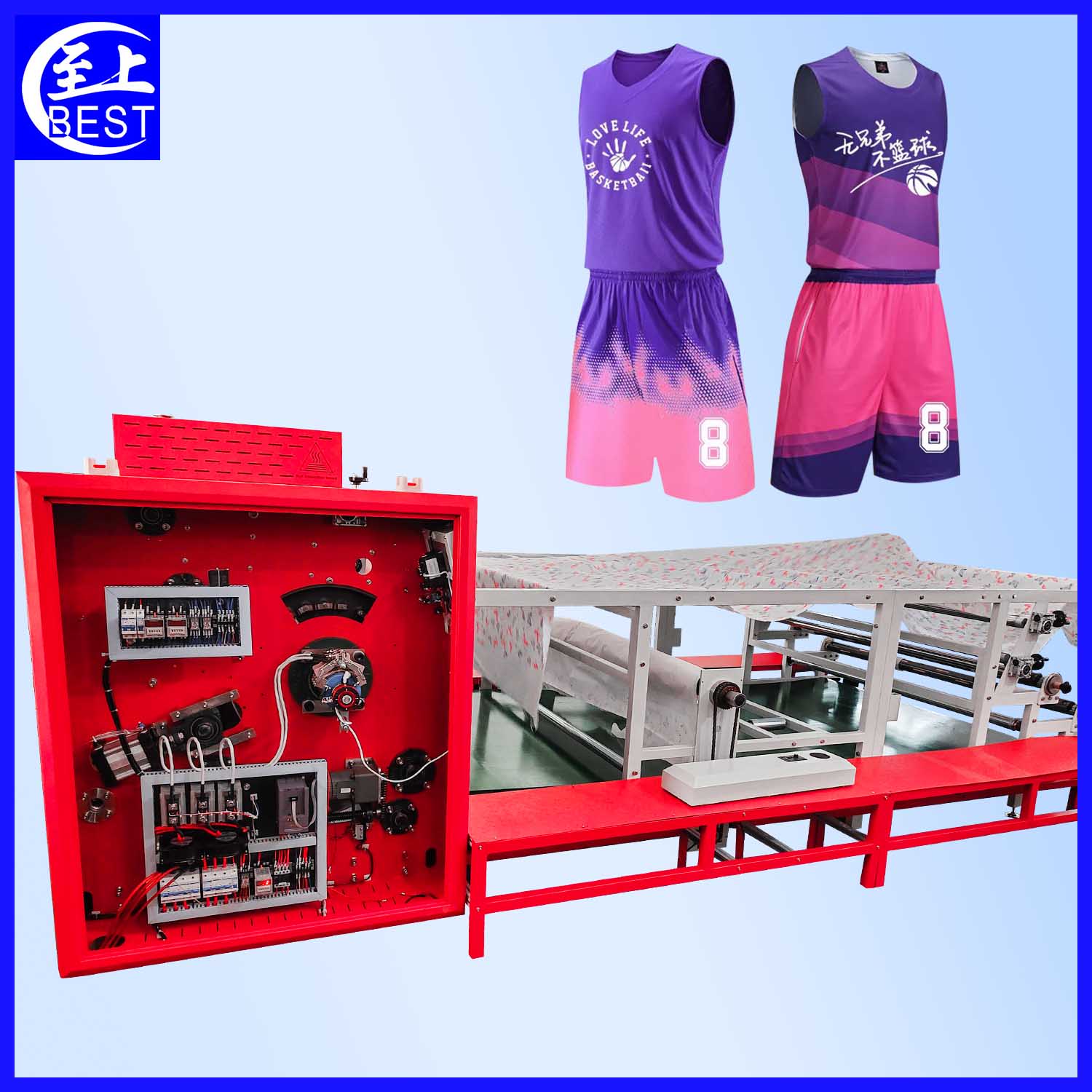

Roller sublimation transfer machine

Product Item: BA61170

Roller diameter: 610 mm

Roller Width: 1700 mm

Printing speed: 150-450 m/h

Voltage: 3 phase 220 V / 380 V

Product Manual：Roller sublimation machine for both cloth and pieces fabric, effective transfer width is 1.7 meters. 3.5 meters worktable.

SPECIFICATION

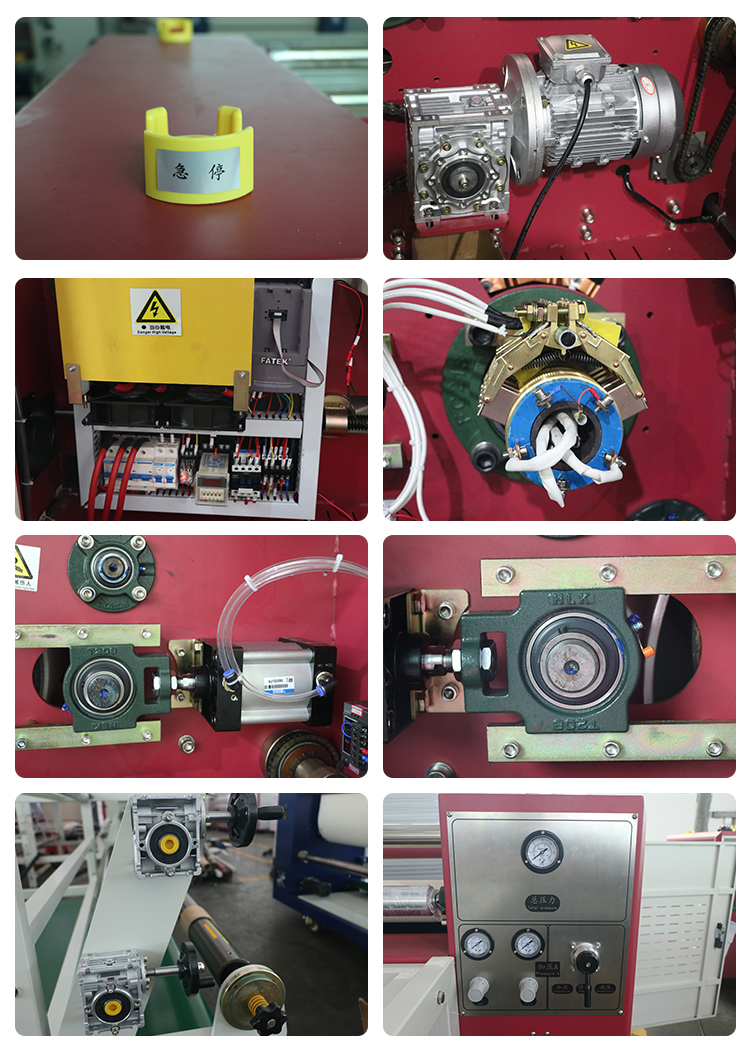

Main Features

1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.

4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

Product Parameters

Model	BA61120	BA61170	BA61190
Transfer width	1200 mm (47'')	1700 mm (67'')	1900 mm (74.8")
Blanket size	1250348010 mm	1750348010 mm	1950348010 mm
heating Power	32.5 KW	40.5 KW	40.5 KW
Heating media	Oil
Voltage	3 phase 220 V/380 V
Number of heating elements	27
Diameter of drum	610 mm
transfer speed	150-450 m/h
Max. Temperature	260 ℃
Process Path	feeding in through the top of drum
Blanket separation method	manual
Sensor adjust the Blanket device	no
Function of roll-to-roll	yes
Function of piece-by piece	yes
Number of feeding rollers	3
Number of collection rollers	2
Number of air shaft	no
worktable	yes, without glass
Air compressor	needed, 1 P, (not include)
machine weight	1500 KG	1700 KG	1900 KG
Worktable size	3.51.551.2 m	3.51.881.2 m	3.52.051.2 m
