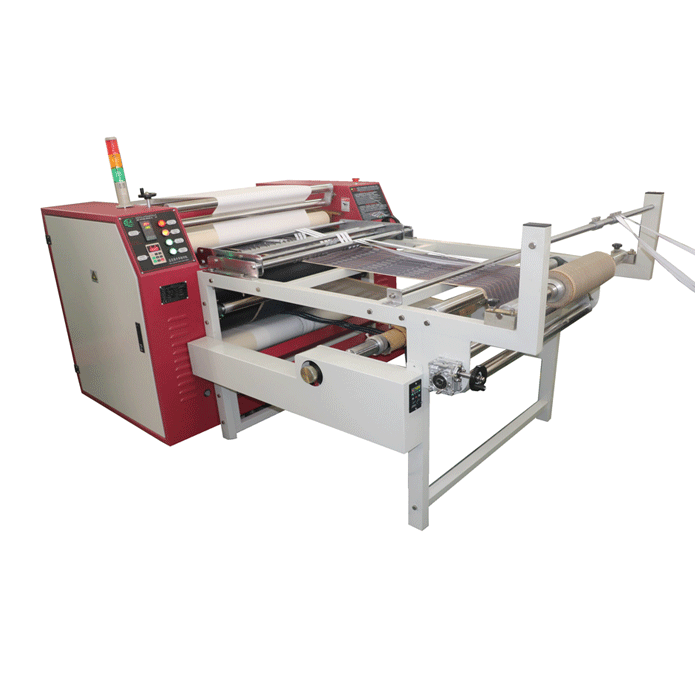

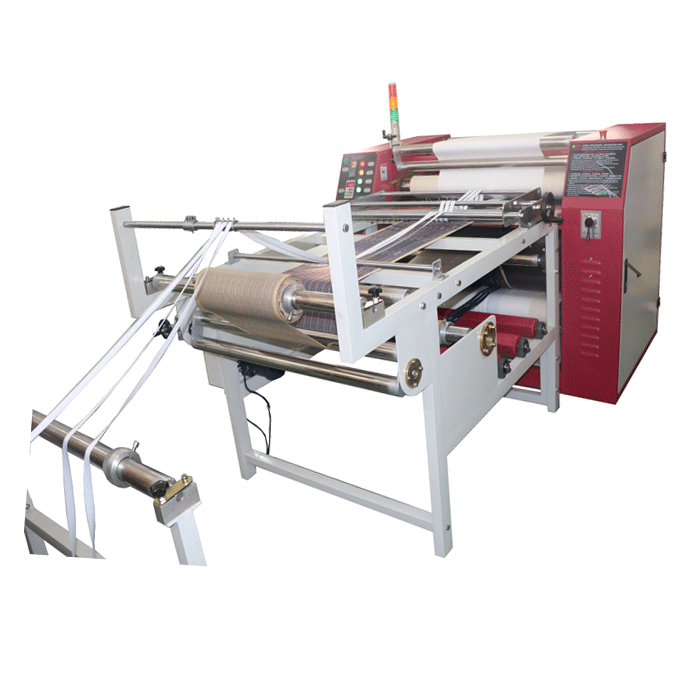

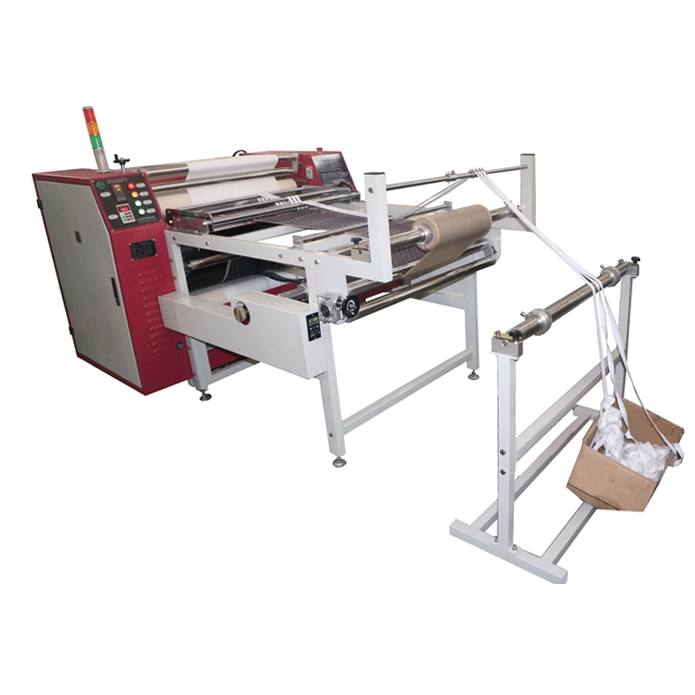

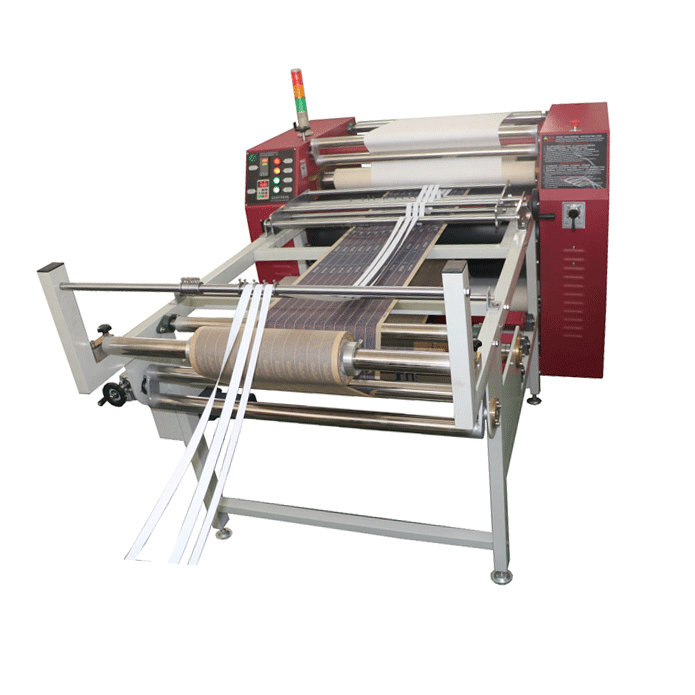

AA42 Series Webbing sublimation heat transfer machine Technical parameter |
|||
|
Model |
AA4260 |
AA4290 |
AA42120 |
|
Roller Tape |
Simple Drum |
Simple drum |
Simple drum |
|
Roller size |
420*600mm |
420*900mm |
420*1200mm |
|
Roller diameter |
420mm |
420mm |
420mm |
|
Roller surface |
Coated with Teflon |
Coated with Teflon |
Coated with Teflon |
|
Transfer width |
600mm |
900mm |
1200 |
|
Transfer speed |
120-380m/h |
120-380m/h |
120-380m/h |
|
Diameter of shaft |
50mm |
50mm |
50mm |
|
Air swelling shaft |
2 |
2 |
2 |
|
The main machine dim |
1900*1000*1200 |
2500*1000*1200 |
2640*900*1200 |
|
The work table dim |
3500*1188*900 |
3500*1888*900 |
3500*2090*900 |
|
Installed dim |
4500*2500*1200 |
4500*2500*1200 |
|
|
Wooden box size |
2580*105*1330 |
2580*105*1330 |
|
|
Net weight |
520kg |
600kg |
750kg |
|
Gross weight |
550kg |
650kg |
800kg |
|
Blanket size |
175*2680*8 |
175*2680*8 |
1950*2680*8 |
|
Blanket separation method |
Manual |
Manual |
Manual |
|
Pressurized cylinder |
1set |
1set |
1set |
|
Air pressure |
su80*50 |
su80*50 |
su80*50 |
|
Pressurized way |
Pneumatic pressure |
Pneumatic pressure |
Pneumatic pressure |
|
Pressure shaft diameter |
87mm |
87mm |
87mm |
|
Power supply |
3 phase 380 volts |
3 phase 380 volts |
3 phase 380 volts |
- Independent welding table, easy to install and remove;
- Air up the shaft roller, precise tension control, to ensure that the delivery of paper neat;
- Anti-pinch device to ensure safe operation;
- Microcomputer operation panel, simple and reliable;
- High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
- Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
- Roller with internal and external precision turning and grinding, uniform thickness, heat transfer stability;
- Brand thermal oil, heat stable and uniform;
- Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
- Independent pneumatic booster agencies to ensure high - pressure environment transfer, to achieve the transfer of color thousands;
- Brand electrical components, long life, low failure rate;
- latest collector ring signal transmission, high stability and long life;
- PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independent and flexible adjustment;
- Independent blanket correction structure;
- Precise temperature control system, the temperature difference in the range of 5 degrees;
- Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance
