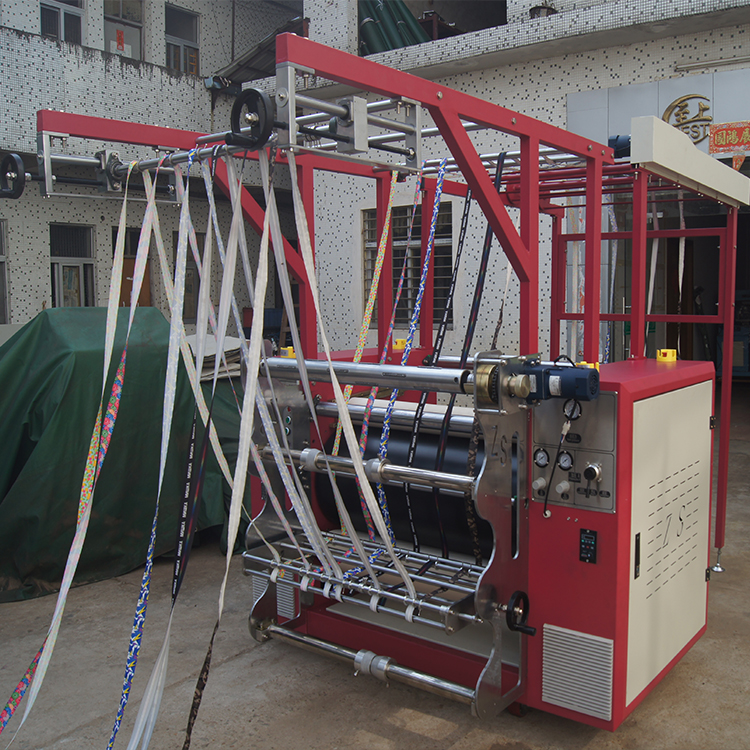

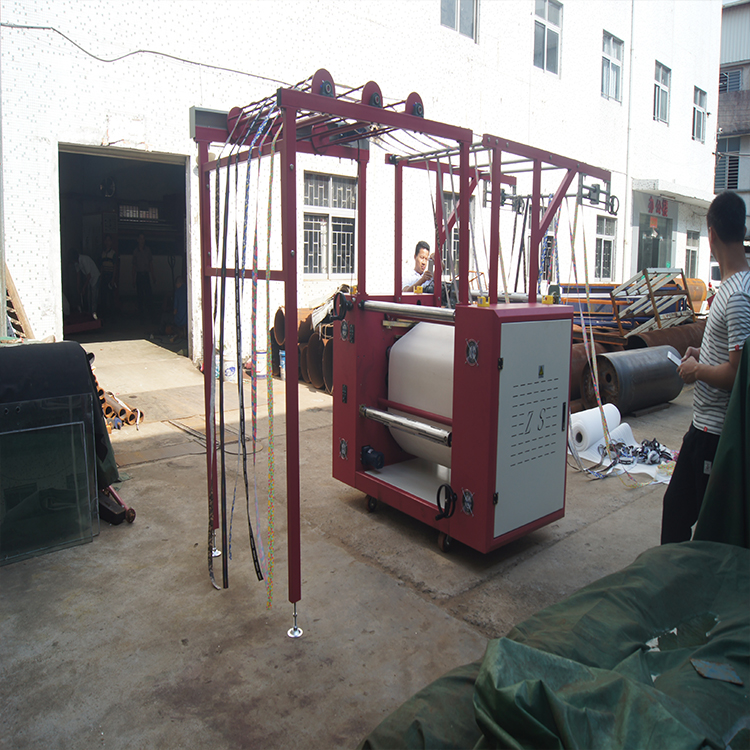

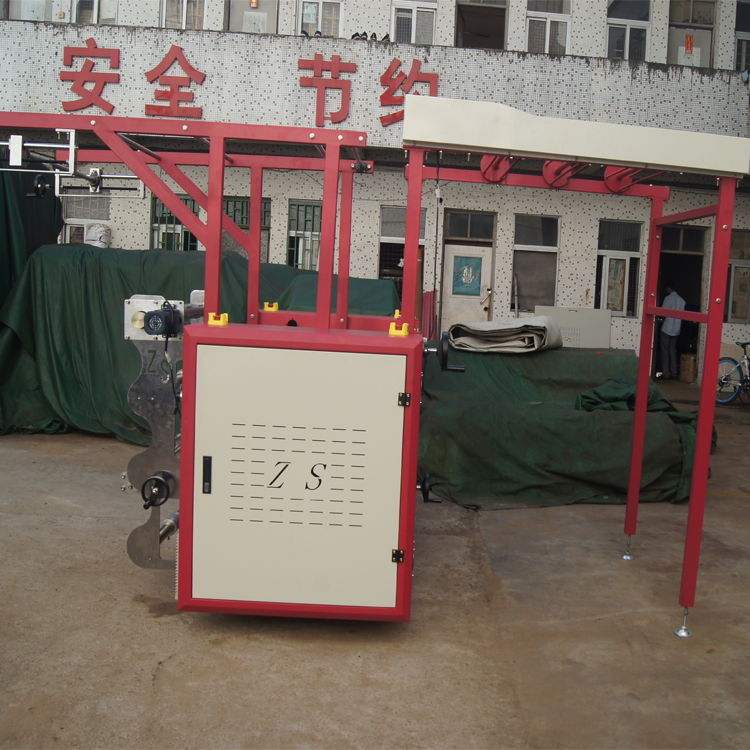

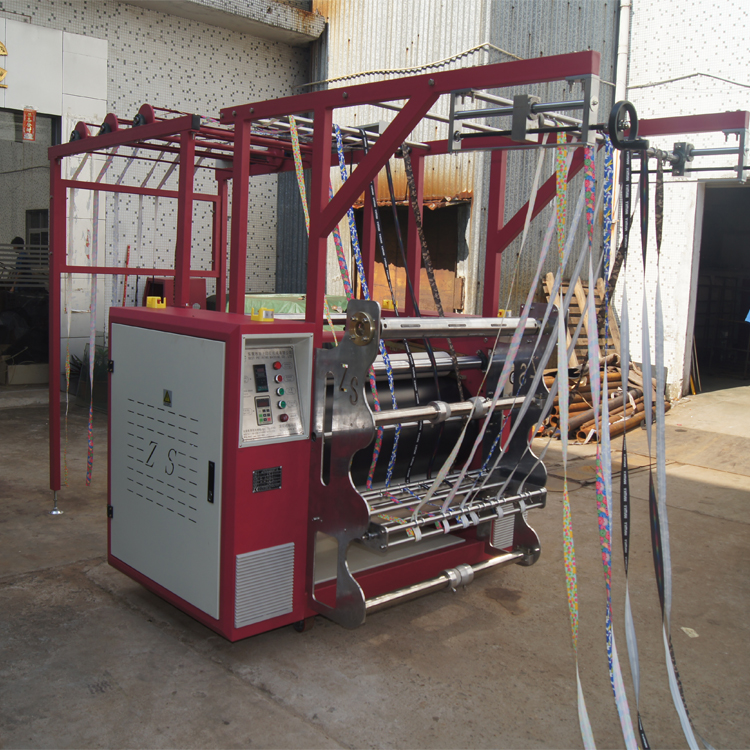

Down-feeding Ribbon Roller transfer machine - 副本

Product Item: AB4290

Category: AB

Product Manual：Ribbon Roller transfer machine

SPECIFICATION

AB42 Series Webbing sublimation heat transfer machine Technical parameter
Model	AB4260	AB4290	AB42120
Roller Tape	Simple Drum	Simple drum	Simple drum
Roller size	420*600mm	420*900mm	420*1200mm
Roller diameter	420mm	420mm	420mm
Roller surface	Coated with Teflon	Coated with Teflon	Coated with Teflon
Transfer width	600mm	900mm	1200
Transfer speed	120-380m/h	120-380m/h	120-380m/h
Diameter of shaft	50mm	50mm	50mm
Air swelling shaft	2	2	2
The main machine dim	190010001200	250010001200	26409001200
The work table dim	35001188900	35001888900	35002090900
Installed dim	450025001200	450025001200
Wooden box size	25801051330	25801051330
Net weight	520kg	600kg	750kg
Gross weight	550kg	650kg	800kg
Blanket size	17526808	17526808	195026808
Blanket separation method	Manual	Manual	Manual
Pressurized cylinder	1set	1set	1set
Air pressure	su80*50	su80*50	su80*50
Pressurized way	Pneumatic pressure	Pneumatic pressure	Pneumatic pressure
Pressure shaft diameter	87mm	87mm	87mm
Power supply	3 phase 380 volts	3 phase 380 volts	3 phase 380 volts

Independent welding table, easy to install and remove;
Air up the shaft roller, precise tension control, to ensure that the delivery of paper neat;
Anti-pinch device to ensure safe operation;
Microcomputer operation panel, simple and reliable;
High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
Roller with internal and external precision turning and grinding, uniform thickness, heat transfer stability;
Brand thermal oil, heat stable and uniform;
Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
Independent pneumatic booster agencies to ensure high - pressure environment transfer, to achieve the transfer of color thousands;
Brand electrical components, long life, low failure rate;
latest collector ring signal transmission, high stability and long life;
PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independent and flexible adjustment;
Independent blanket correction structure;
Precise temperature control system, the temperature difference in the range of 5 degrees;
Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
