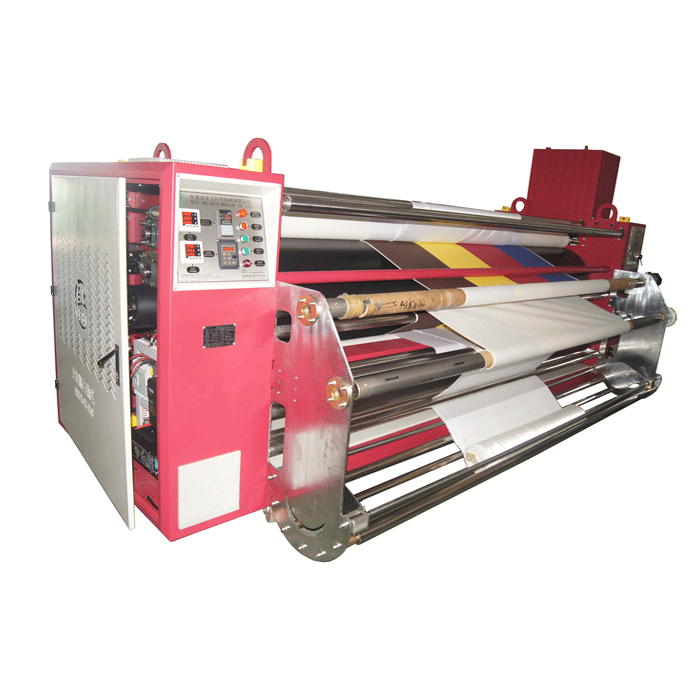

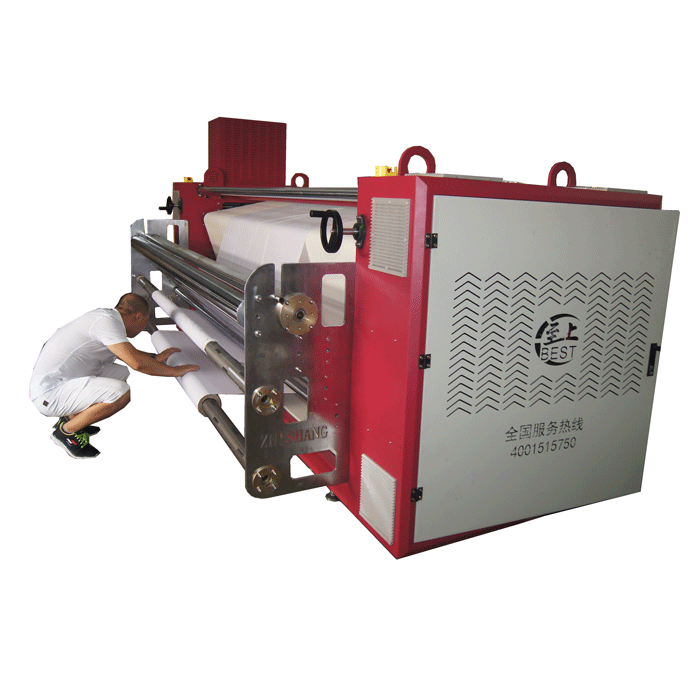

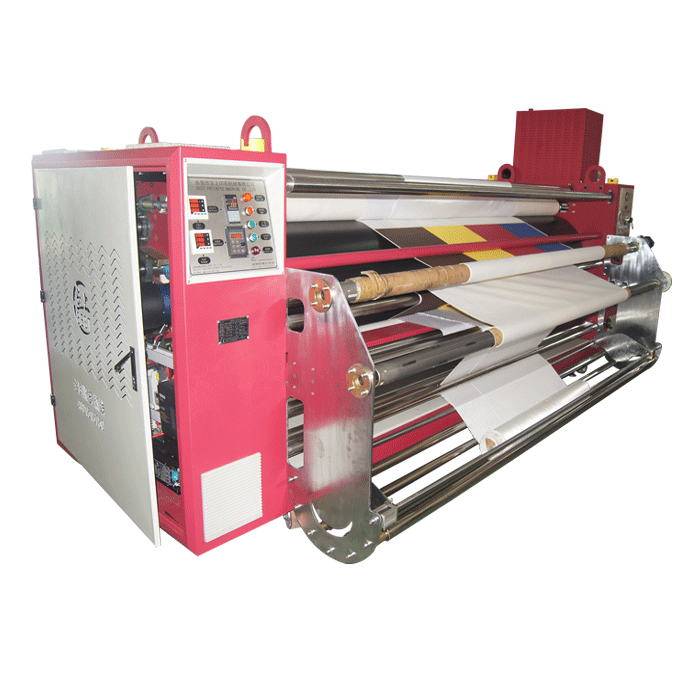

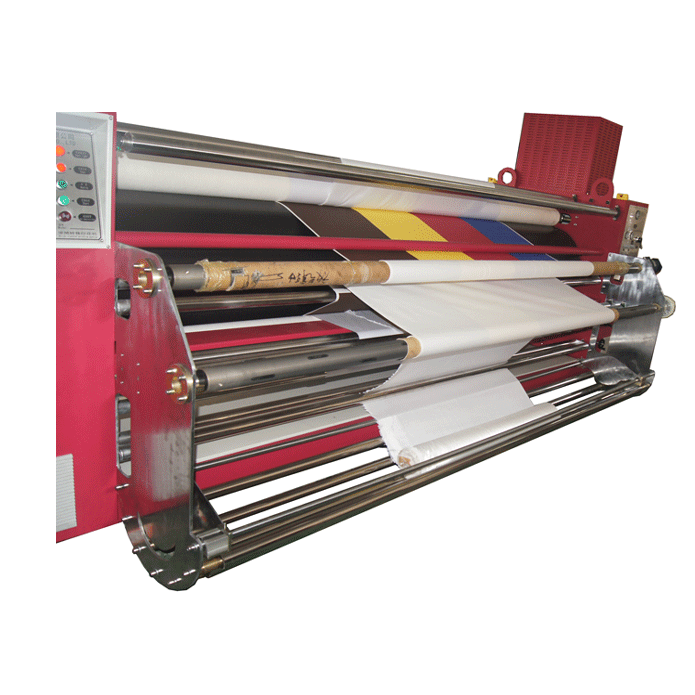

Roller heat transfer machine BA42320

Product Item: BA42320

Roller diameter: 420 mm

Roller Width: 3200 mm

Printing speed: 80-100 m/h

Voltage: 3 phase 220 V / 380 V

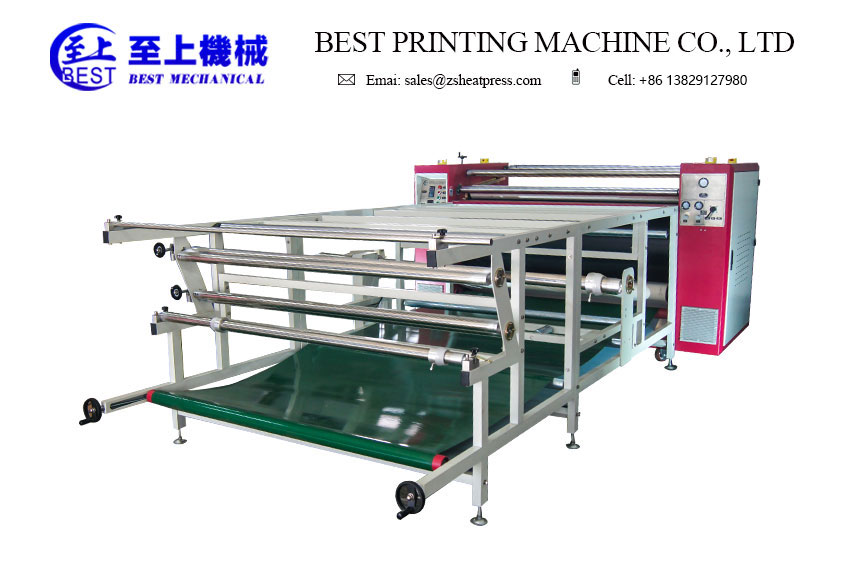

Product Manual：Roller sublimation machine for both cloth and pieces fabric, effective transfer width is 3.2 meters. 3.5 meters worktable.

SPECIFICATION

Main features:

1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.

4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

Roller heat transfer machine
Model	BA42120	BA42170	BA42190
Transfer width	1200 mm (47'')	1700 mm (67'')	1900 mm (74.8")
Blanket size	1250268010 mm	1750268010 mm	1950268010 mm
heating Power	21.6 KW	27 KW	27 KW
Heating media	Oil
Voltage	3 phase 220 V/380 V
Number of heating elements	18
Diameter of drum	420 mm
transfer speed	120-180 m/h
Max. Temperature	260 ℃
Process Path	feeding in through the top of drum
Blanket separation method	manual
Sensor adjust the Blanket device	no
Function of roll-to-roll	yes
Function of piece-by piece	yes
Number of feeding rollers	3
Number of collection rollers	2
Number of air shaft	no
worktable	yes, without glass
Air compressor	needed, 1 P, (not include)
machine weight	900 KG	1200 KG	1600 KG
Worktable size	3.51.550.9 m	3.51.880.9 m	3.52.050.9 m

Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine, digital inkjet printer, digital cloth inkjet printer.

Company is committed to digital printing technology research and development, has achieved fruitful results.

Products:

1. Digital machine series: Digital inkjet printer, digital cloth inkjet printer for roll and pieces.

2. Heat transfer machine series：flatbed heat press machine, roller heat transfer machine, mainly for clothing and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
