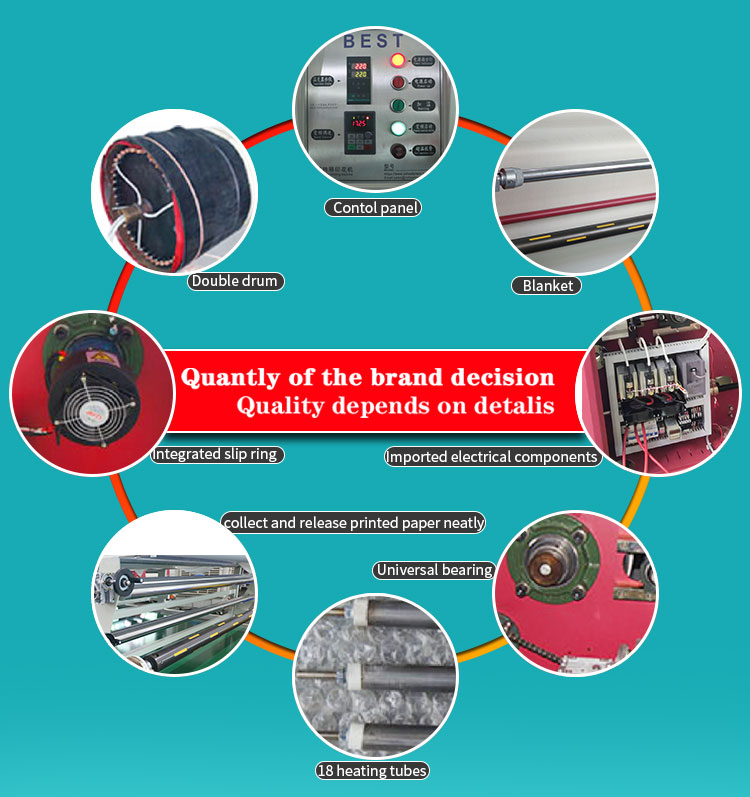

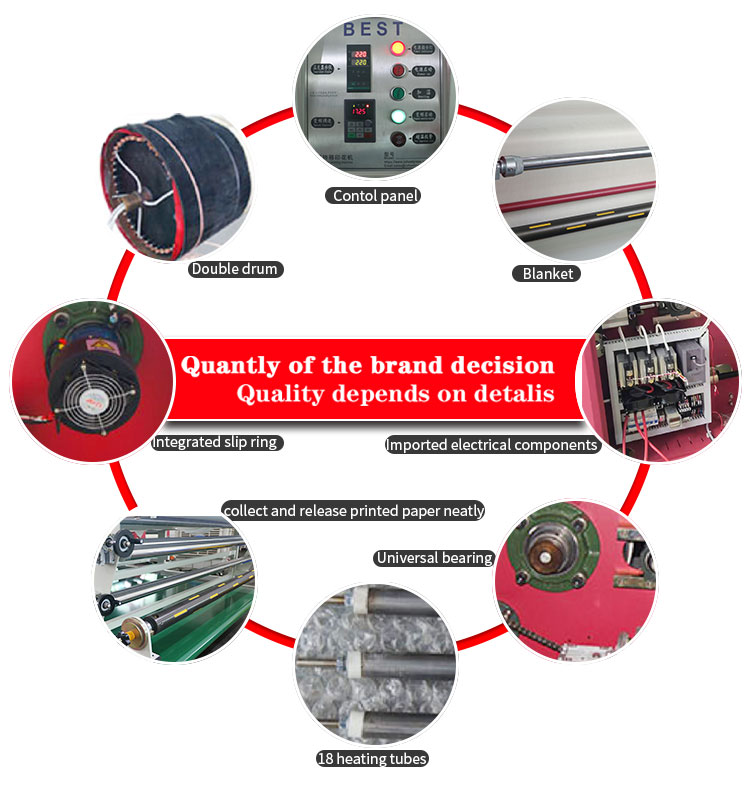

Main features:
1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.
3. Integrated slip ring: free maintenance
4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.
5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.
6. Small machine, proofing and producing, lower cost.

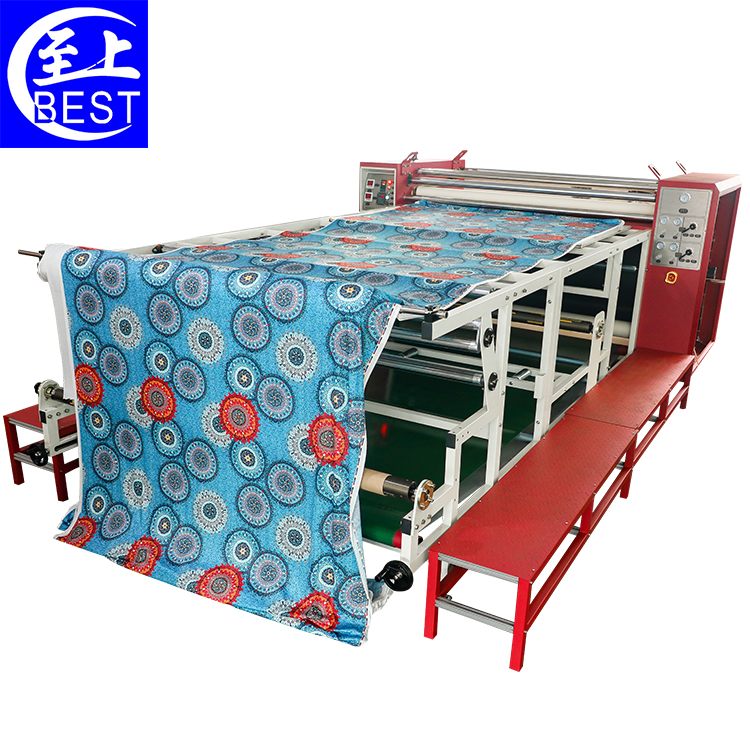

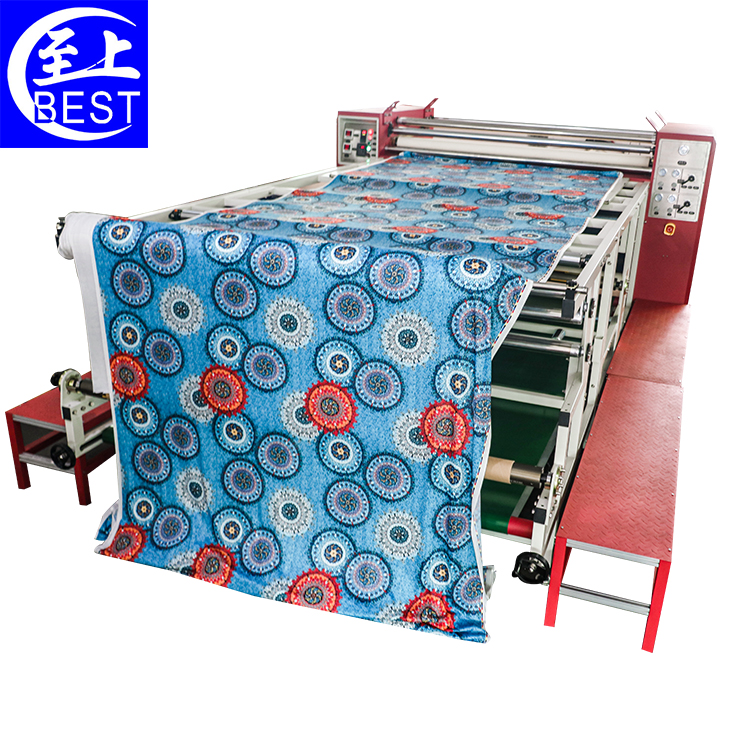

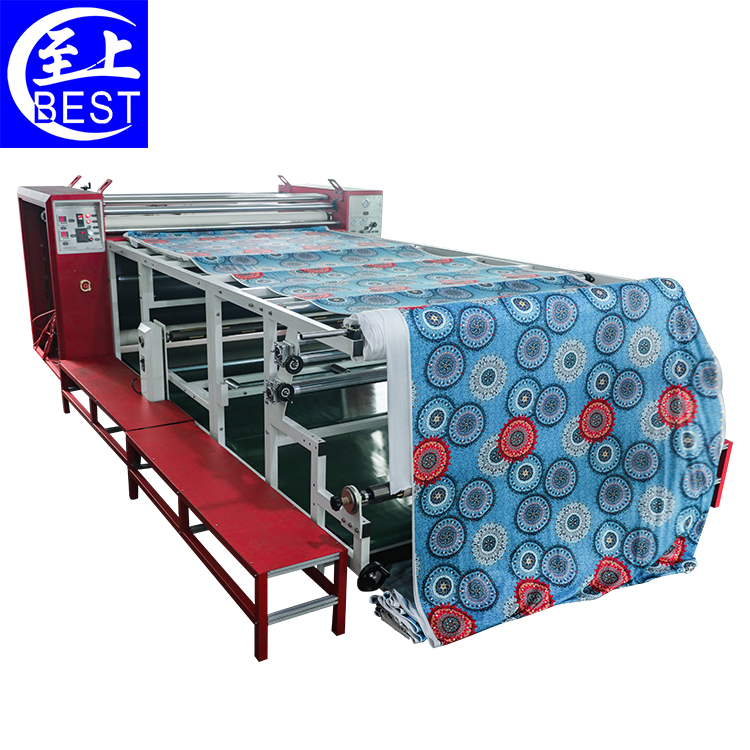

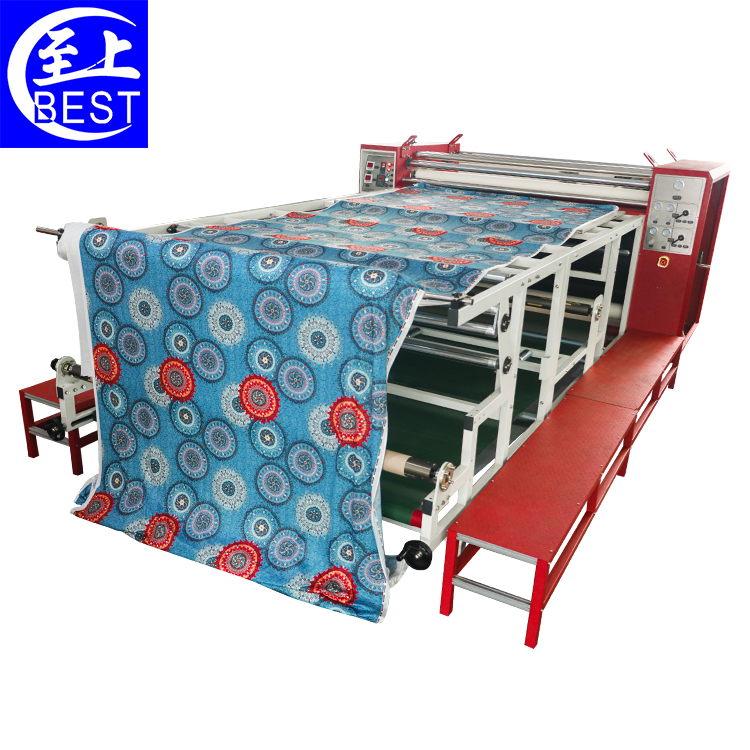

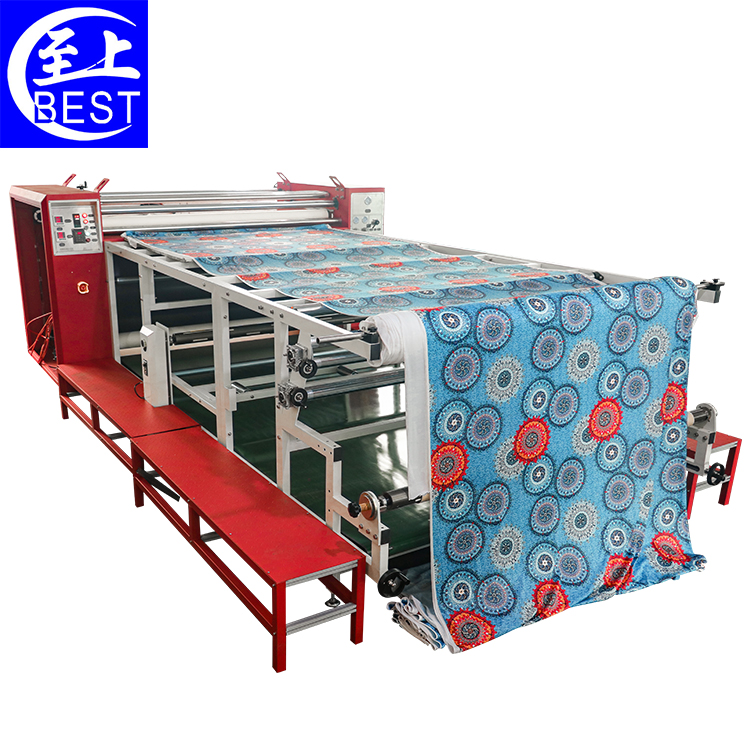

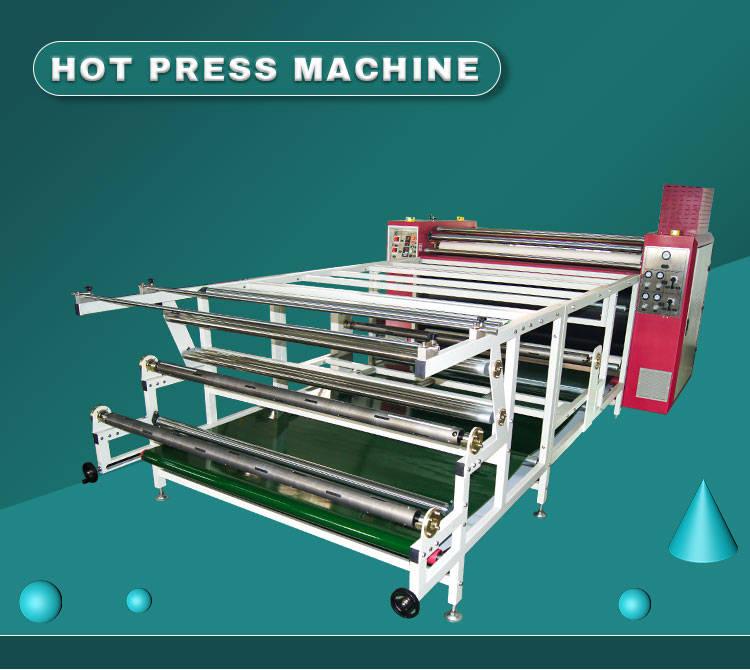

| Roller heat transfer machine | |||
| Model | BB80120 | BB80170 | BB80190 |
| Transfer width | 1200 mm (47'') | 1700 mm (47'') | 1900 mm (74.8") |
| heating Power | 46.8 KW | 58.5 KW | 58.5 KW |
| Heating media | Oil | ||
| Voltage | 3 phase 220 V/380 V | ||
| Number of heating elements | 39 | ||
| Diameter of drum | 800 mm | ||
| transfer speed | 180-450 m/h | ||
| Max. Temperature | 260 ℃ | ||

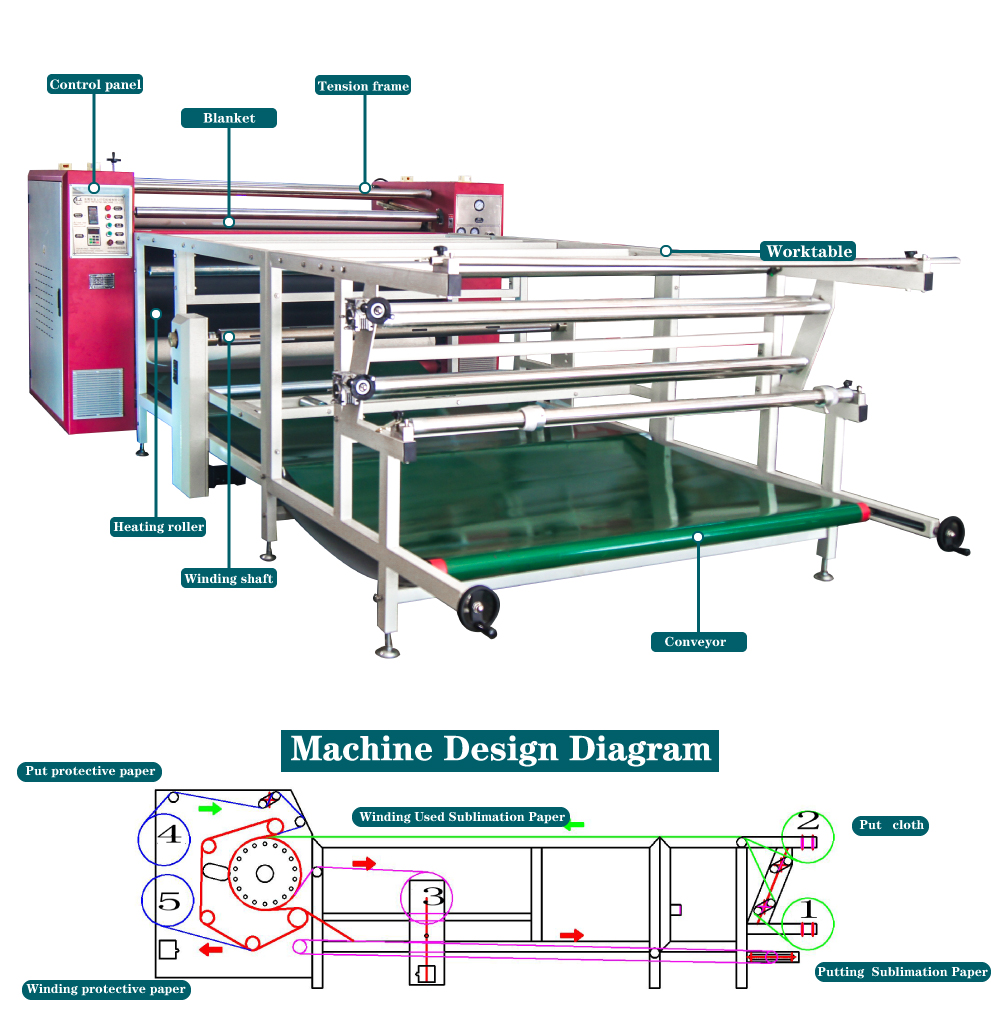

| Process Path | feeding in through the top of drum | ||
| Blanket separation method | manual | ||
| Sensor adjust the Blanket device | no | ||
| Function of roll-to-roll | yes | ||
| Function of piece-by piece | yes | ||
| Number of feeding rollers | 3 | ||
| Number of collection rollers | 2 | ||
| Number of air shaft | 2 | ||
| worktable | yes, without glass | ||
| Air compressor | needed, 1 P, (not include) | ||
| machine weight | 2200 KG | 2600 KG | 2900 KG |
| Worktable size | 3.5*1.55*1.4 m | 3.5*1.88*1.4 m | 3.5*2.05*1.4 m |
Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine,
digital inkjet printer, digital cloth inkjet printer.
Company is committed to digital printing technology research and development, has achieved fruitful results.
Products:
1. Digital machine series: Digital inkjet printer, digital cloth inkjet printer for roll and pieces.
2. Heat transfer machine series：flatbed heat press machine, roller heat transfer machine, mainly for clothing
and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
