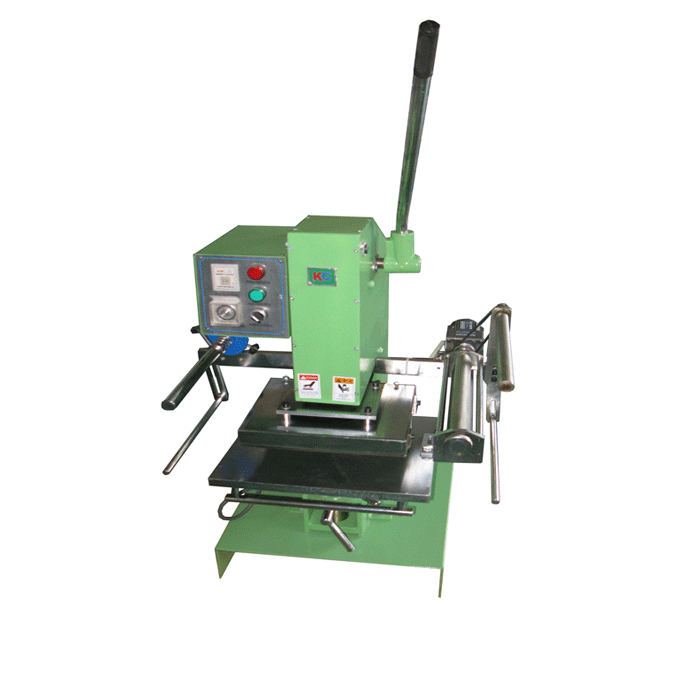

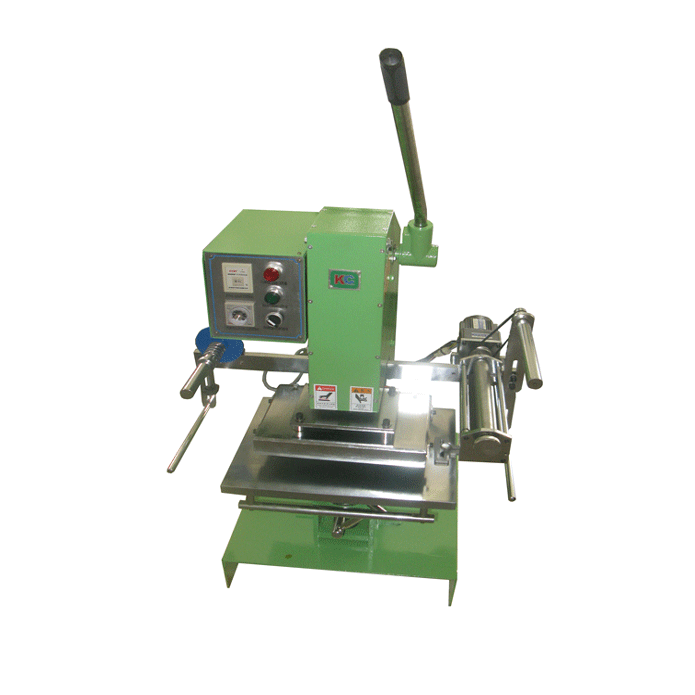

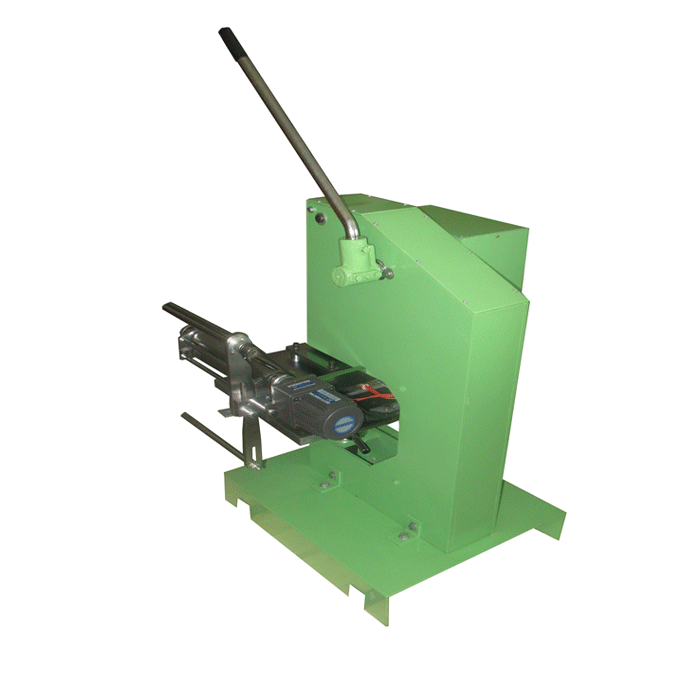

Manual hot stamping Machine //Structure
|
Working table
|
Manual in-out , size: 420*500mm.
|
Stamping Head drive
|
Manual , Level keeping pressure
|
Foil collecting method
|
Motor-drive , Collecting time adjustable
|
Press
|
Vertical press
|
Temperature control
|
Heater tube, automatically controlling
|
Foil collecting
|
Automatically collecting
|
Press adjustment way
|
Up-down of working table
|
Manual hot stamping machine //Usage and characters
|
Guide
|
-
Gilding - paper, leather, wood, plastic, glass,
-
Baked - wood products, baked painting, gift box packaging;
-
Embossing - paper, leather, cloth.
-
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
-
Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
-
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
|
Application fields
|
-
Paper Gilding, Leather Impression, Wood ware Baking
-
Paper Concave-convex embossing, Cloth hot stamping,
-
Plastics Bronzing ,Glass and metal Heat transfer
|
Manual hot stamping Machine //Parameter
|
Technical parameters
|
HM-TC3030LT
|
HM-TC3035LT
|
-
Size of Hot Plate :300×300 mm
-
Work Table Size :420 ×500 mm
-
Max. Pressure :4000Kg
-
Max. Head Stroke :40mm
-
Heater Capacity: 1200 W
-
Foil Controller :motor Controller
-
Temperature adjustment :0-300oC
|
-
Size of Hot Plate :300×350 mm
-
Work Table Size :420 ×500 mm
-
Max. Pressure :4000Kg
-
Max. Head Stroke :40mm
-
Heater Capacity: 1200 W
-
Foil Controller :motor Controller
-
Temperature adjustment :0-300oC
|
HM-TC3040LT
|
HM-TC3045LT
|
-
Size of Hot Plate :300×400 mm
-
Work Table Size :420 ×500 mm
-
Max. Pressure :4000Kg
-
Max. Head Stroke :40mm
-
Heater Capacity: 1200 W
-
Foil Controller :motor Controller
-
Temperature adjustment :0-300oC
|
-
Size of Hot Plate :300×450 mm
-
Work Table Size :420 ×500 mm
-
Max. Pressure :4000Kg
-
Max. Head Stroke :40mm
-
Heater Capacity: 1200 W
-
Foil Controller :motor Controller
-
Temperature adjustment :0-300
|
Works supply
|
|
Package list
|
-
Plywood Case: Size: 840*840*1140mm;
-
Gross weight: 210kg;
-
CBM: 0.80
|
H.S.Code
|
8443198000
|
Certificate
|
CE
|
Manual hot stamping machine //Advantage
|
Function
|
-
Table can be manually pulled out for easy product to take on and off;
-
Table can be back-front, rotate adjustment, quick easy safe operation;
-

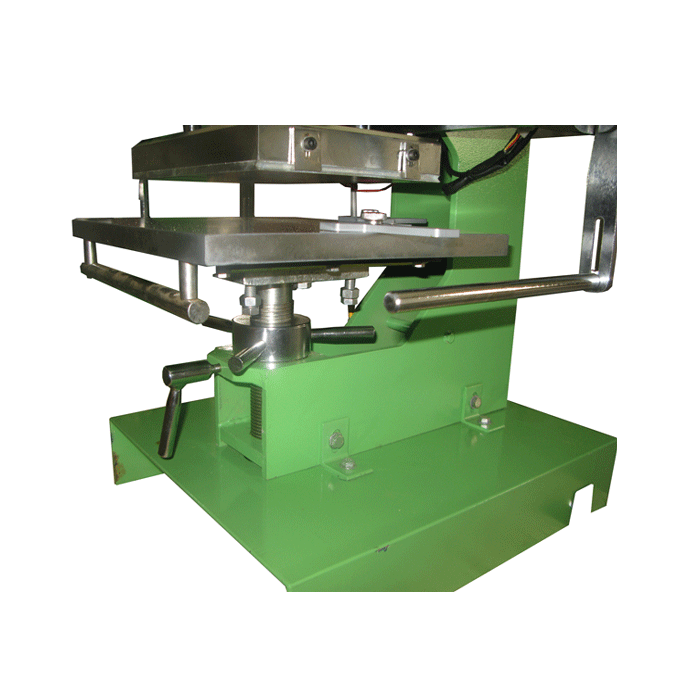

Table with screw height adjustment control, precision and stability;
-
Automatic temperature control system, temperature can be set freely;
-
Stamping time can be adjusted;
-
Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
-
Heating pipe heating systems, long life, easy to replace;
-
Manual stamping operation, self-locking mechanism Pressing constant pressure;
-
High-strength steel plate and cast gilt table, flatness
|
