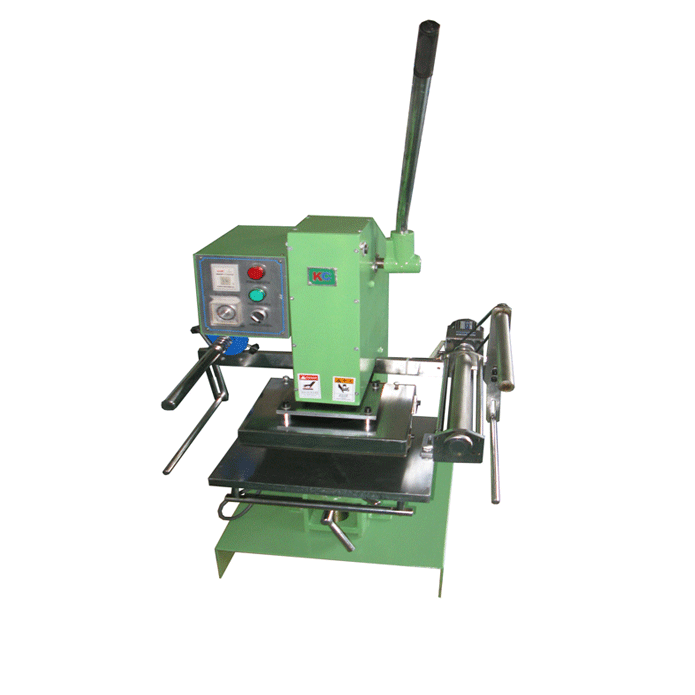

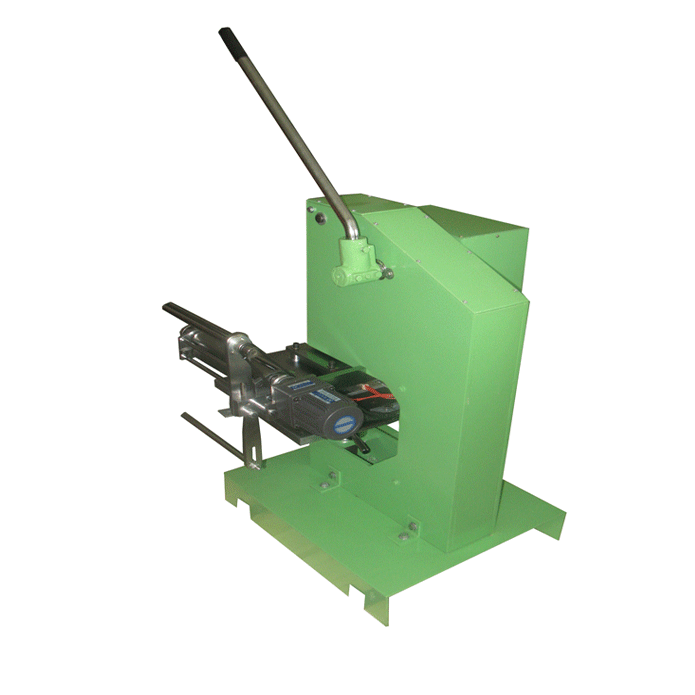

Manual hot stamping Machine //Structure

Working table

Manual in-out , size: 420*500mm.

Stamping Head drive

Manual , Level keeping pressure

Foil collecting method

Motor-drive , Collecting time adjustable

Press

Vertical press

Temperature control

Heater tube, automatically controlling

Foil collecting

Automatically collecting

Press adjustment way

Up-down of working table

Manual hot stamping machine //Usage and characters

Guide

• Gilding - paper, leather, wood, plastic, glass,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

Application fields

• Paper Gilding, Leather Impression, Wood ware Baking
• Paper Concave-convex embossing， Cloth hot stamping,
• Plastics Bronzing ，Glass and metal Heat transfer

Manual hot stamping Machine //Parameter

Technical parameters

HM-TC3030LT

• Size of Hot Plate :300×300 mm
• Work Table Size :420 ×500 mm
• Max. Pressure :4000Kg
• Max. Head Stroke :40mm
• Heater Capacity: 1200 W
• Foil Controller :motor Controller
• Temperature adjustment :0-300oC

• Size of Hot Plate :300×350 mm
• Work Table Size :420 ×500 mm
• Max. Pressure :4000Kg
• Max. Head Stroke :40mm
• Heater Capacity: 1200 W
• Foil Controller :motor Controller
• Temperature adjustment :0-300oC

• Size of Hot Plate :300×400 mm
• Work Table Size :420 ×500 mm
• Max. Pressure :4000Kg
• Max. Head Stroke :40mm
• Heater Capacity: 1200 W
• Foil Controller :motor Controller
• Temperature adjustment :0-300oC

• Size of Hot Plate :300×450 mm
• Work Table Size :420 ×500 mm
• Max. Pressure :4000Kg
• Max. Head Stroke :40mm
• Heater Capacity: 1200 W
• Foil Controller :motor Controller
• Temperature adjustment :0-300

Works supply

• 110V-220VPower supply；

Package list

• Plywood Case: Size: 840*840*1140mm;
• Gross weight: 210kg;
• CBM: 0.80

H.S.Code

8443198000

Certificate

CE

Manual hot stamping machine //Advantage

Function

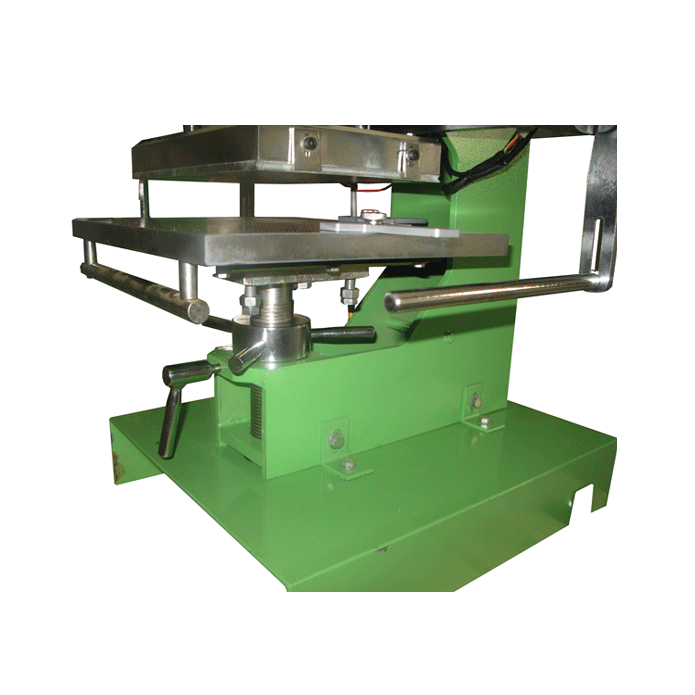

• Table can be manually pulled out for easy product to take on and off;
• Table can be back-front, rotate adjustment, quick easy safe operation;
• Table with screw height adjustment control, precision and stability;
• Automatic temperature control system, temperature can be set freely;
• Stamping time can be adjusted;
• Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
• Heating pipe heating systems, long life, easy to replace;
• Manual stamping operation, self-locking mechanism Pressing constant pressure;
• High-strength steel plate and cast gilt table, flatness
