Pneumatic Movement-table hot stamping Machine//Structure
|

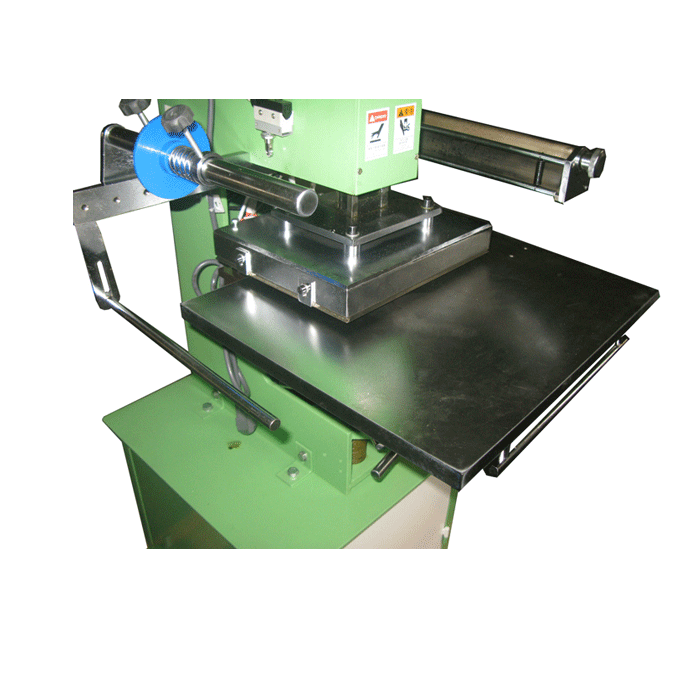

Working table
|
High strength Steel plate , size:320*400mm.automatically in-out
|
Stamping Head drive
|
Pneumatic drive
|
Foil collecting method
|
Motor-drive , Collecting time adjustable
|
Press adjustment
|

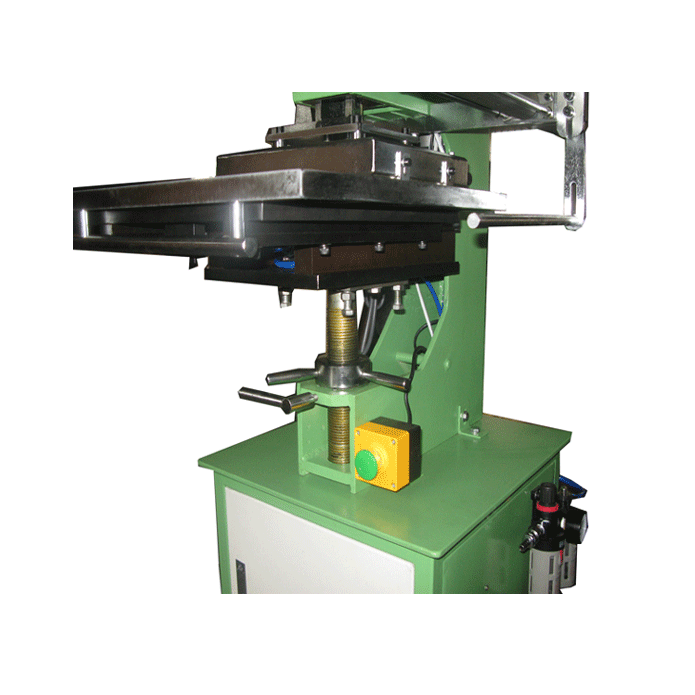

Up-down of working table
|
Temperature control
|
Heating tube heat up,Automatically temperature controlling, temperature free setting
|
Foil collecting
|
Motor drive, Automatically collecting
|
Pneumatic movement-table hot stamping machine //Usage and characters
|
Guide
|
-
Gilding - paper, leather, wood, plastic,
-
Baked - wood products, baked painting, gift box packaging;
-
Embossing - paper, leather, cloth.
-
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
-
Automatic feed foil, automatic temperature controlling ensures stamping quality.
-
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
-
Pneumatic drive, pressure large.
-
Automatically working table
|
Application fields
|
-
Paper Gilding, Leather Impression, Wood ware Baking
-
Paper Concave-convex embossing, Cloth hot stamping,
-
Plastics Bronzing
-
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
-
Woodiness objects baking-burns and Impress;
-
Leather bronzing and Molding;
-
Paper products concavo indentation.
-
Graduated disc of clock bronzing.
|
Pneumatic movement-table hot stamping Machine //Parameter
|
Technical parameters
|
H-TC1520N
|
H-TC2129N
|
-
Hot plate area:150× 200 mm
-
Working table area:320 ×400mm
-
Max printing pressure:2,000-3000 Kg
-
Up and down distance:45mm
-
Heat wattage:1200W
-
Foil in feed: Motor Drive
-
Temperature adjustment:0-300oC .
|
-
Hot plate area:210×290 mm
-
Working table area:320 ×400mm
-
Max printing pressure:2,000-3000 Kg
-
Up and down distance:45mm
-
Heat wattage:1000W
-
Foil in feed: Motor Drive
-
Temperature adjustment:0-300oC .
|
H-TC1927N
|
H-TC3025N
|
-
Hot plate area:190 × 270 mm
-
Working table area:320 ×400mm
-
Max printing pressure:2,000-3000 Kg
-
Up and down distance:45mm
-
Heat wattage:1200W
-
Foil in feed: Motor Drive
-
Temperature adjustment:0-300oC .
|
-
Hot plate area:300 × 250 mm
-
Working table area:320 ×400mm
-
Max printing pressure:2,000-3000 Kg
-
Up and down distance:45mm
-
Heat wattage:1000W
-
Foil in feed: Motor Drive
-
Temperature adjustment:0-300oC
|
Works supply
|
-
110V-220VPower supply;
-
5-7Bar compress air
|
Package list
|
-
Package size: 1060*1030*1800mm
-
Gross weight: 650kg;
-
CBM: 1.96524
|
|
H.S.Code
|
8443198000
|
Certificate
|
CE
|
Pneumatic movement-table hot stamping machine //Advantage
|
Function
|
-

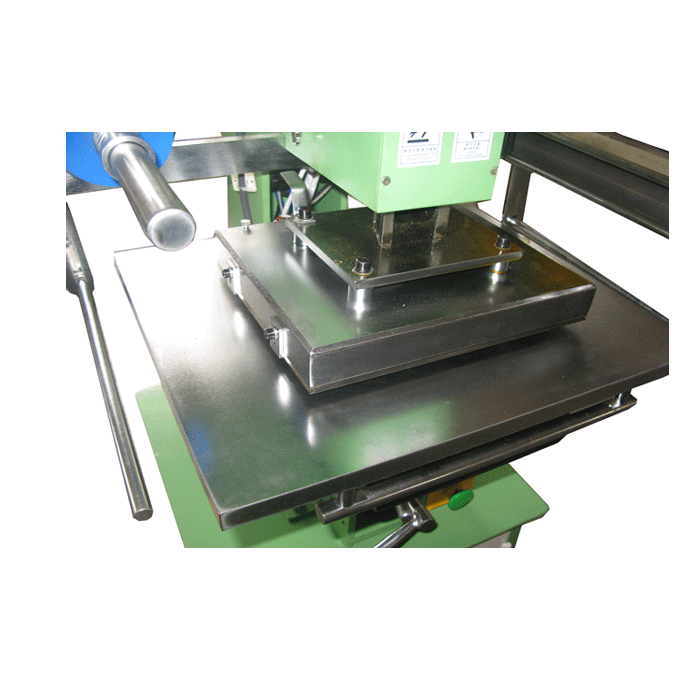

Table can be pulled into and pulled out the pick and place of convenience products;
-
Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
-
Table lifting screw adjustment, simple and convenient;
-
Relays for process control, stable operation, easy maintenance;
-
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
-
leveraged cylinder pressure, the pressure is uniform and strong;
-
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
-
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
-
Using high strength steel, gilt plate and table, has a very high flatness;
-

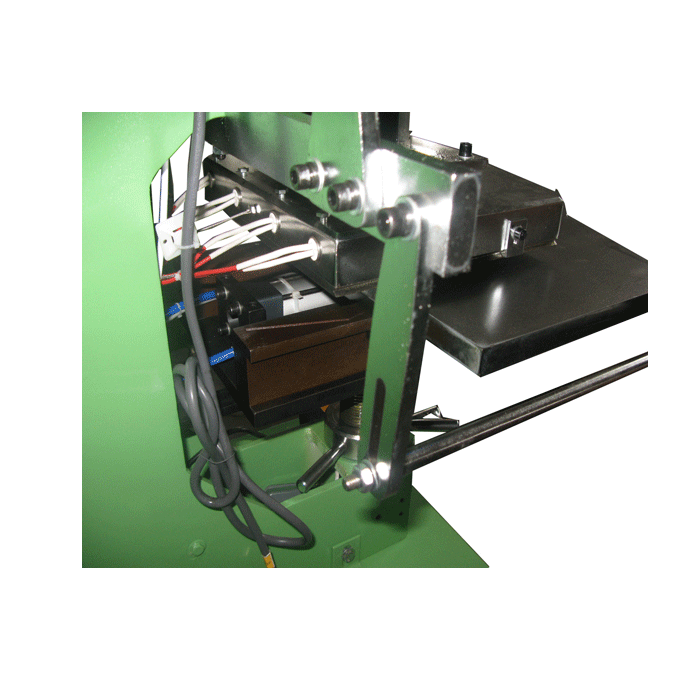

Heating tube for heating, heat supply is stable, easy to replace
|
