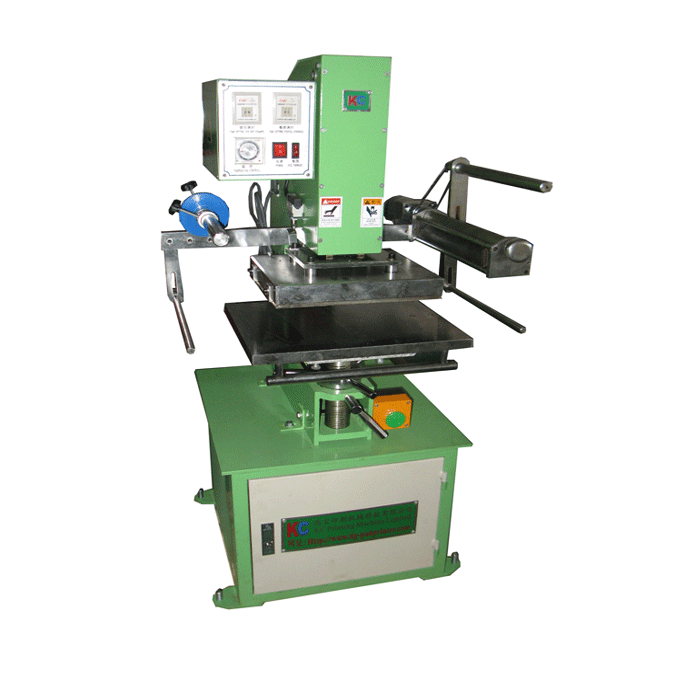

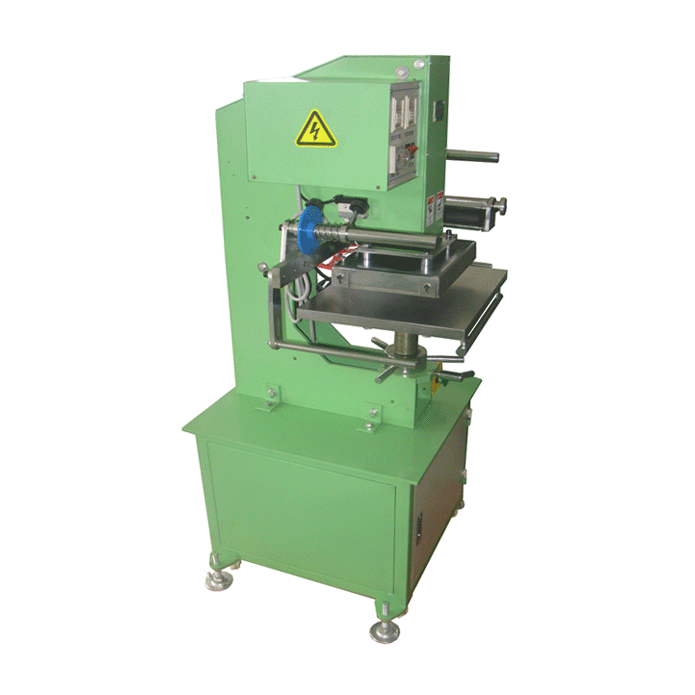

Pneumatic hot stamping Machine//Structure

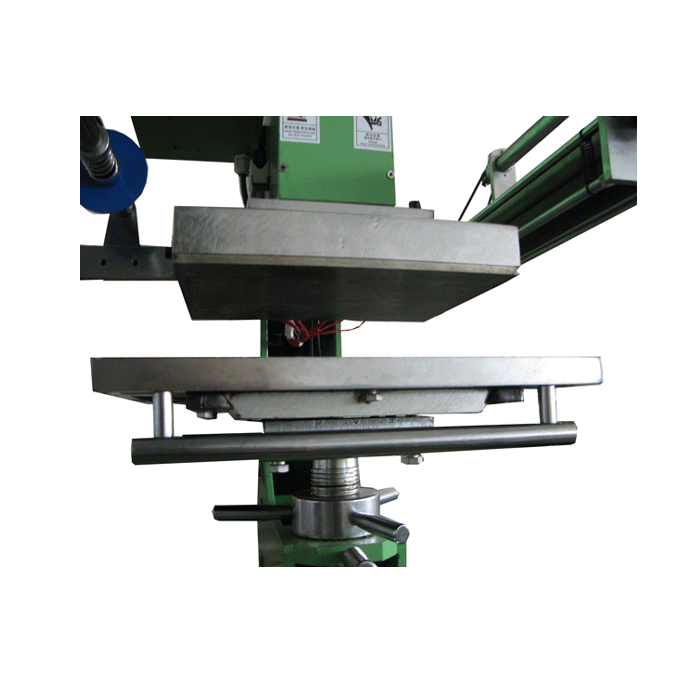

Working table

High strength Steel plate , size:320*400mm.

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

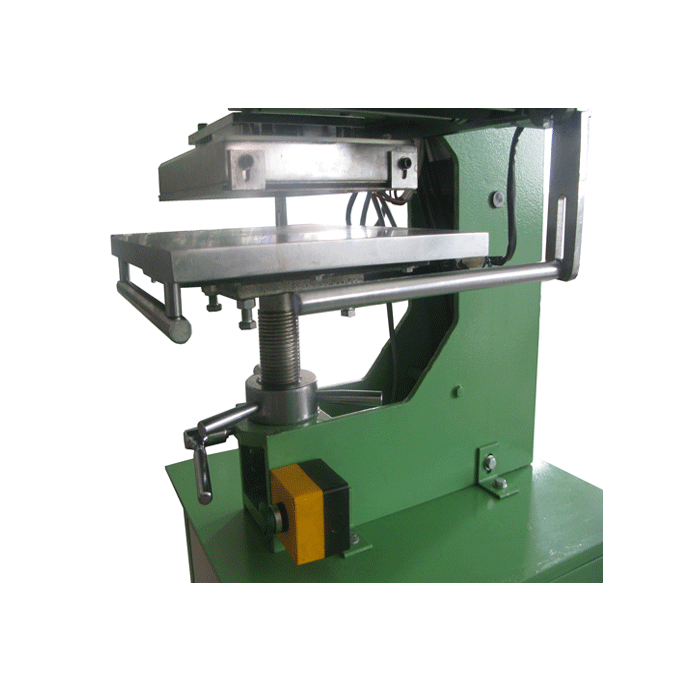

Up-down of working table

Temperature control

Heating tube heat up，Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

 Pneumatic hot stamping machine //Usage and characters

Guide

• Gilding - paper, leather, wood, plastic,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
• Pneumatic drive, pressure large.

Application fields

• Paper Gilding, Leather Impression, Wood ware Baking
• Paper Concave-convex embossing， Cloth hot stamping,
• Plastics Bronzing
• Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
• Woodiness objects baking-burns and Impress;
• Leather bronzing and Molding;
• Paper products concavo indentation.
• Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

Technical parameters

H-TC1520

• Hot plate area:150× 200 mm
• Working table area:320 ×400mm
• Max printing pressure:2,000－3000 Kg
• Up and down distance:45mm
• Heat wattage:1200W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC .

• Hot plate area:190 × 270 mm
• Working table area:320 ×400mm
• Max printing pressure:2,000－3000 Kg
• Up and down distance:45mm
• Heat wattage:1200W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC

H-TC2129

• Hot plate area:210×290 mm
• Working table area:320 ×400mm
• Max printing pressure:2,000－3000 Kg
• Up and down distance:45mm
• Heat wattage:1000W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC .

• Hot plate area:300 × 250 mm
• Working table area:320 ×400mm
• Max printing pressure:2,000－3000 Kg
• Up and down distance:45mm
• Heat wattage:1000W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC

Works supply

• 110V-220VPower supply；
• 5-7Bar compress air

Package list

• Package size: . 0.770×0.820×1.550mm
• Gross weight: 220kg
• CBM: 1.0145

H.S.Code

8443198000

Certificate

CE

 Pneumatic hot stamping machine //Advantage

Function

• Table can be pulled into and pulled out the pick and place of convenience products;
• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Table lifting screw adjustment, simple and convenient;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
• Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace
