Manual 6-color garment screen printing Machine //Parameters

Technical parameters

SM6-5050T 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：450X450mm
• Size of working table: 500×500mm;
• Max printing speed：600cs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.

SM6-4565 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：400X600mm
• Size of working table: 450×650mm;
• Max printing speed：600pcs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

SM6-5070 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：450X650mm;
• Size of working table: 500×700mm;
• Max printing speed：600Pcs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

Works supply

• 110V-220V Power supply；

Package parameters

• Gross weight: 484kg
• Wooden case dimension:1.67×1.65×1.15m;
• CM: 3.17CBM

H.S.CODE

8443198000

Certificate

CE

Manual 6-color garment screen printing machine//Advantage

Function

• Operated by hand, controllable is well;

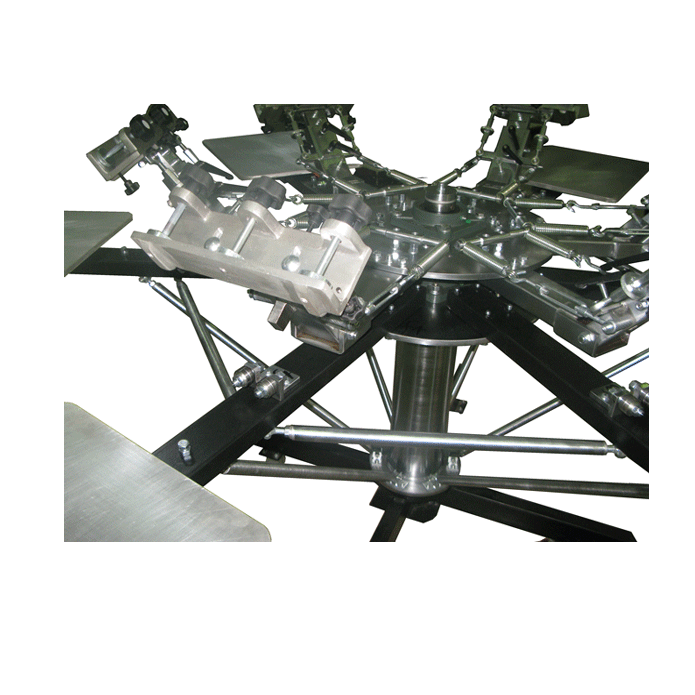

• Total-steel rotating-axis system ensure whirling free and Adaptability.
• High-strength support pole make the machine structure rigidity.
• Six-color screen printing one time, overprint is precision .
• Screen frame can be adjustable according to different objects to be printed.
• Screen frame can be rise up after printing so that printing quality.

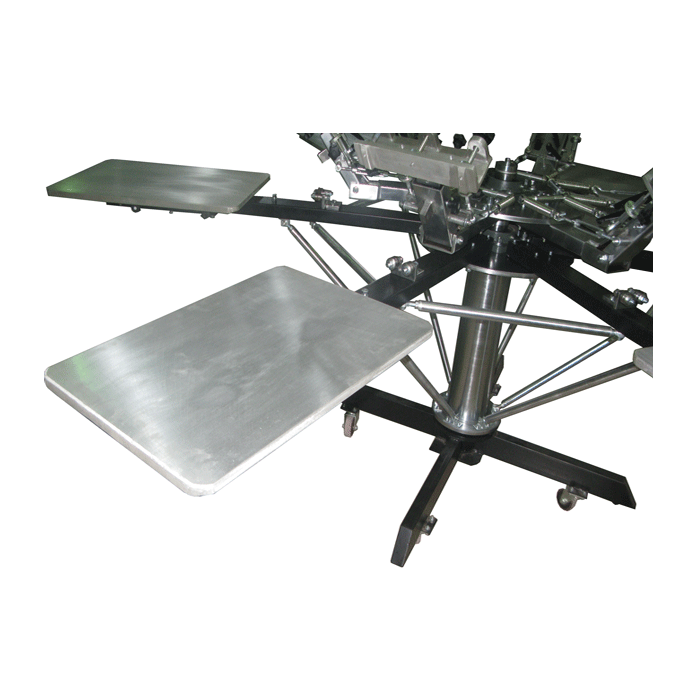

• High-stabilization working table ensure non-shaking when printing
• IR Dryer with machine make the clothes drying fast
