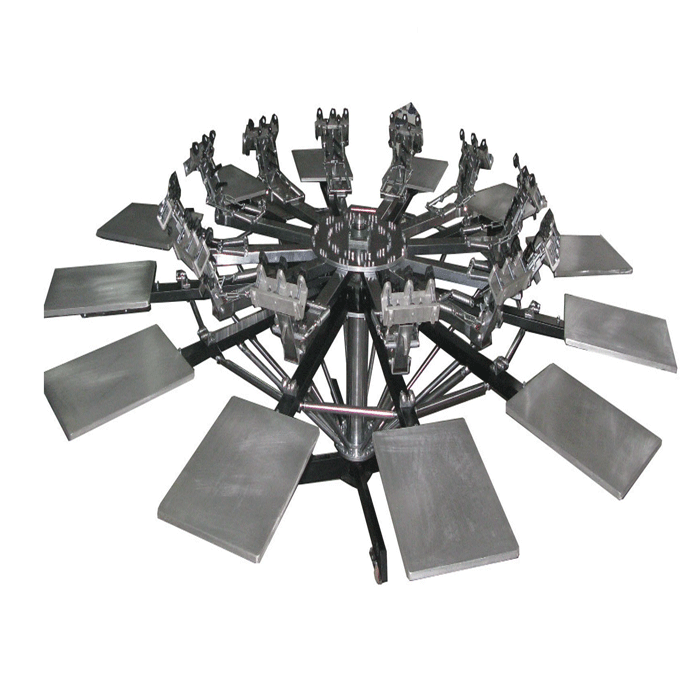

Manual 10-color Garment screen printing machine//Usage and characters

Guide

• This is a rotary clothes 10-color manual screen printing machine, suitable for printing 500mm * 500mm about the format of the fabric, paper, clothes; T-shirts and other products.
• Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
• Workbench coated with solvent glue is recommended for accurate print positioning;
• Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
• Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
• More suitable for heat set printing ink, printing ink thickness, ink, bright;
• Configuration of infrared drying device, which will help the plastisol ink is fast drying;
• Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.

Application

• T shirt , Clothes, Garment, Fabric, Textile Printing , Cotton
• Glass, Wooden Plate
• CD, DVD.

Manual 10-color garment screen printing Machine //Parameters

Technical parameters

SM10-5050T 10-colour Manual-operating rotating flat screen printing machine

• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：450X450mm
• Size of working table: 500×500mm;
• Max printing speed：500pcs/H.
• Printing number: 10;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.
  SM10-4565 10-colour Manual-operating rotating flat screen printing machine
• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：400X600mm
• Size of working table: 450×650mm;
• Max printing speed：500pcs/H.
• Printing number: 10;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.
  SM10-5070 10-colour Manual-operating rotating flat screen printing machine
• Max printing thickness：0-20 MM;
• Net weight： 560KG;
• Max printing area：450X650mm;
• Size of working table: 500×700mm;
• Max printing speed：500Pcs/H.
• Printing number: 10;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

Works supply

• 110V-220V Power supply；

Package parameters

• Gross weight: 686kg
• Wooden case dimension:2060×2060×1150mm;
• CBM: 4.88014

H.S.CODE

8443198000

Certificate

CE

Manual 10-color garment screen printing machine//Advantage

Function

• Operated by hand, controllable is well;

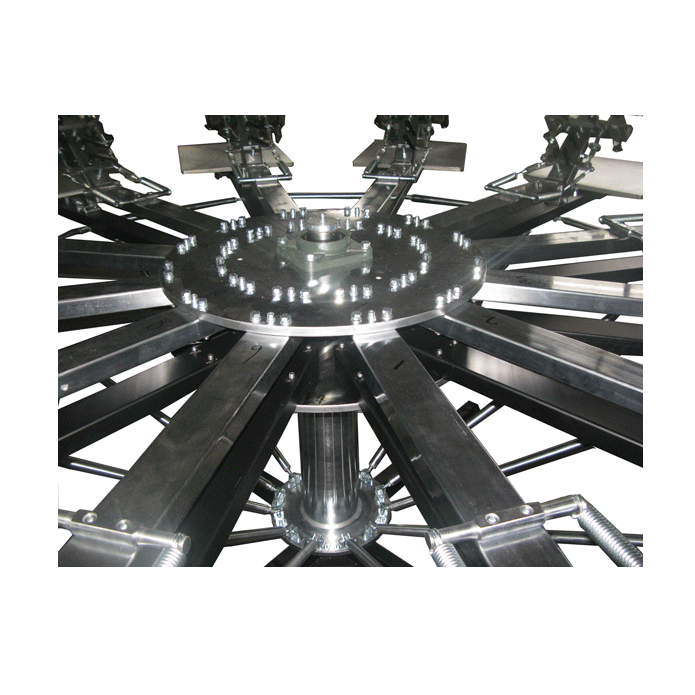

• Total-steel rotating-axis system ensure whirling free and Adaptability.
• High-strength support pole make the machine structure rigidity.
• 10-color screen printing one time, overprint is precision .
• Screen frame can be adjustable according to different objects to be printed.
• Screen frame can be rise up after printing so that printing quality.

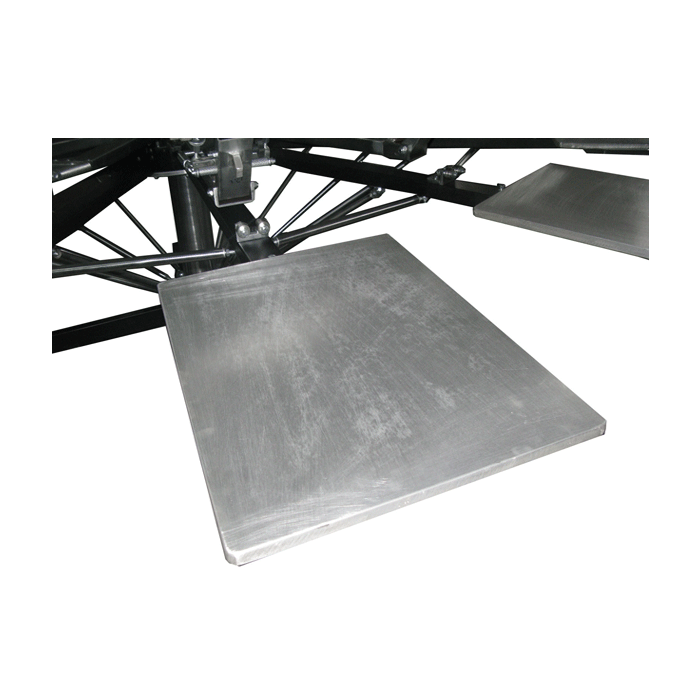

• High-stabilization working table ensure non-shaking when printing
• IR Dryer with machine make the clothes drying fast
