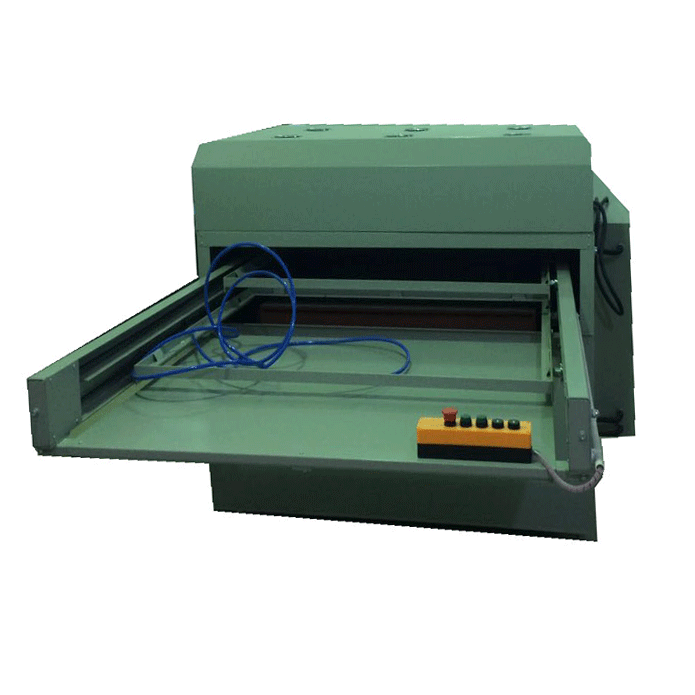

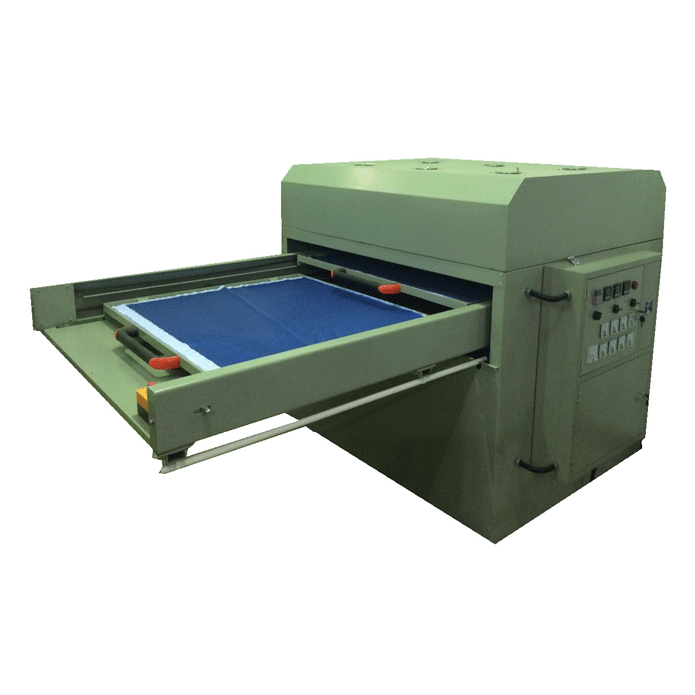

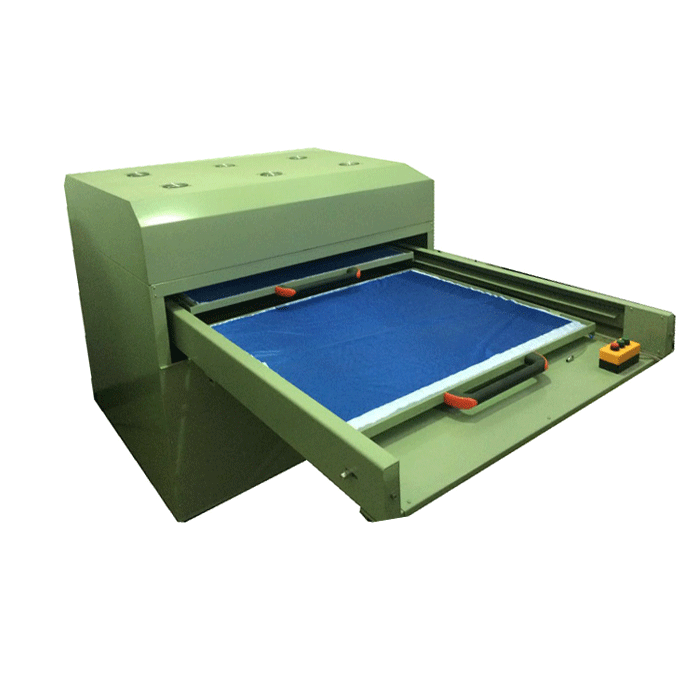

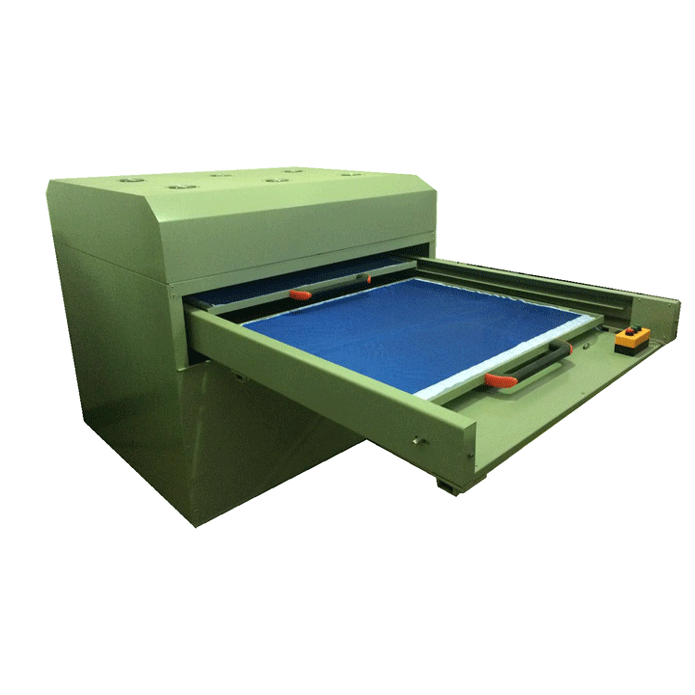

Large format heat press machine

Product Item: HS2-80100

Product Manual：Large size; Hydraulic drive; Double station

SPECIFICATION

Automatic Large format Hydraulic Heat Press Machine

Technical parameters:

Printing area(cm)	80×100	100×120	120*150
Voltage (V)	380/220	380/220	380/220
Power (KW)	11	16	18
Temperature range (℃)	0-399	0-399	0-399
Time range (S)	0-999	0-999	0-999
Weight (KG)	450	650	850
Packing Dimensions (CM)	175122178 27114133	196142180 30816133	245165180 32818133

享到：

Technical characteristics

1.With pneumatic power，the hot-stamping machine can save labor and time and provide operation convenience；
2.Time controller with full digital display, time precisely adjusted，electronic temperature controller with tolerance of ±2℃；
3.Stable running，deforming free and low noise；
4.Automatic control，even and stable pressure (pressure up to 8KG/CM2)；
5.Two optional running modes for work bench: manual and automatic；
6.Dual-side pull type work bench saves labor and provides high printing speed；
7.Heating panel is made of aluminum alloy cast with heating tube and offers high heating rate temperature can reach 200℃ in 30 minutes，other features include even temperature，heat preservation and power saving；
8.Large transfer area can satisfy the requirement on printing large-sized ad displaying boards and sheet-shape pictures.
