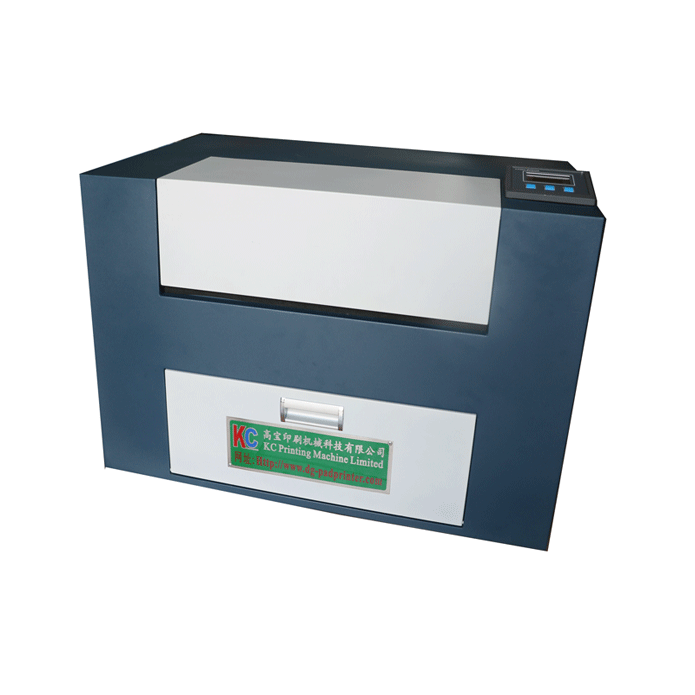

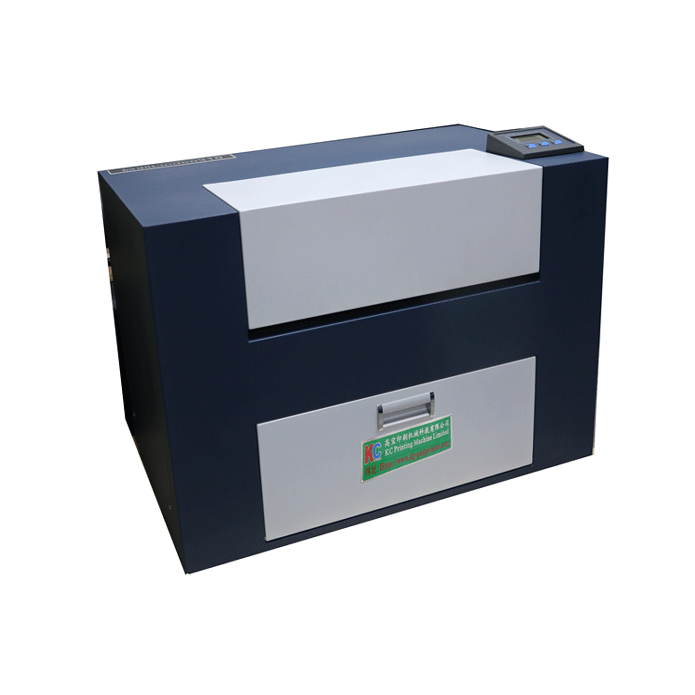

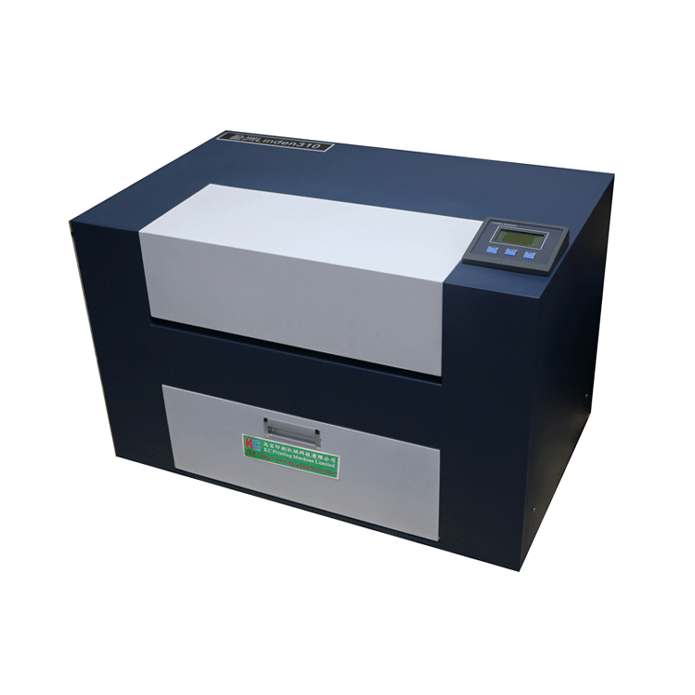

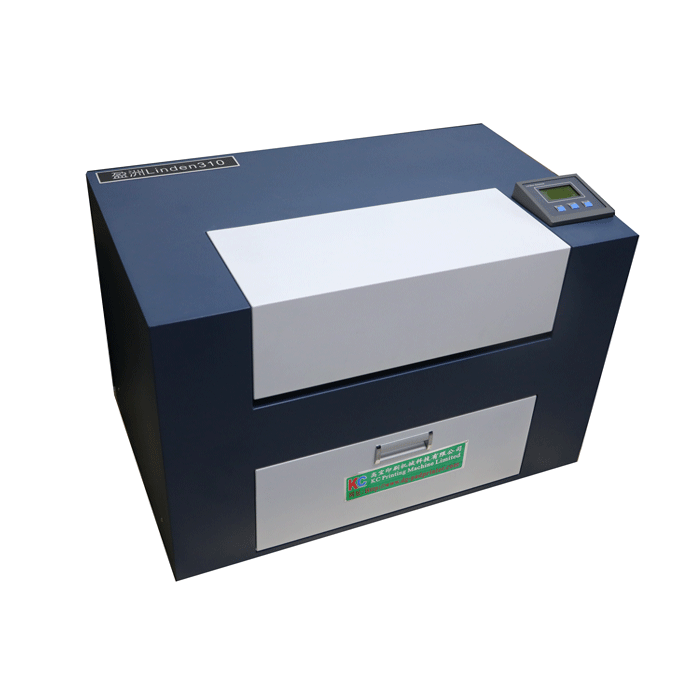

Laser film imagine setter //Usage and characters

Guide

• Laser image setter for film output, and small-format screen printing products, printing shop, printing proofing aspects of the ideal film output device,;
• Darkroom operations, coupled with the traditional develop fixing technology, suitable printing proofing and small batch production tasks frequently produced films troubles;
• Combined with a spin coating Machine, UV Exposure machine, drying box can independently set up a professional printing plate production center.
• Pad Printing and screen printing industry due to the limitations of the lithographic process, the loss of original details and Halftone lost more obvious, and therefore cannot  be too fine print restore. The KC serials laser imagines setter is the R & D for this feature.
• The maximum number of screen lines to 175 lines. Therefore, Suitable for Pad printing, screen printing, Letterpress Printing, stickers, bronzing, medium accuracy of Gravure printing, the output of the ordinary precision offset PS plate making process in the film

Application fields

Film output during plate-making process of: pad printing, screen printing , Letterpress, Adhesive sticker printing, Bronzing, Middle-precision Grave printing, Middle-precision Offset Printing .Garment screen printing field.

Laser film imagine setter //Parameter

Technical parameters

PM-3266FL

• Max exports width: 310mm;
• Output speed: 85mm/min;
• Resolution ratio: 3000DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

PM-3766FL

• Max exports width: 410mm;
• Output speed: 85mm/min;
• Resolution ratio: 3000DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

PM-5266FL

• Max exports width: 510mm;
• Output speed: 85mm/min;
• Resolution ratio: 3000DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

PM-7266FL

• Max exports width: 610mm;
• Output speed: 85mm/min;
• Resolution ratio: 1800DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

Works supply

• 110V-220VPower supply；
• 5-10M2 dark room;
• Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17” Monitor/ 3 2 MB VGA /  X V GA/ CD R OM
• Developing tray, Fixation tray.

Package list

• Package Dimension: 890×580×760mm;
• Gross weight: 110Kg
• CBM: 0.3071

H.S.Code

8443198000

Certicate

CE

 Laser imagine setter //Advantage

Function

• Semiconductor luminescence lamp-house;
• Flat operation mode;
• Expert image controlling technology;
• Film store box aggregated storing, measuring, cutting, feeding function installed
• RIP 3.0 sent with machine, used both PC AND MAC system;
• Design for pad film output.
• The roll film feeding , suitable for the negative of the output of any length and Positive Film.
