Plate drying closet //Usage and characters

Guide

• The Silk plate of the production process, the screen coating sensitive adhesive dry, dry the screen after developing the need to screen drying Machine for drying.;
• Screen flat on the grid level of the oven, about 60 degrees temperature baking, the screen surface contains moisture will be evaporated.
• The dried Screen improve the adhesion of the photoresist and improve the role of the screen plate of the Printing runs rate and life expectancy.
• The Drying closet of the KC-brand box structure made of galvanized sheet wrapped asbestos board, with the temperature constant, the characteristics of the heat available.

Application fields

• Nylon silk plate
• PET Silk plate
• Stainless steel silk plate

Plate drying closet //Parameter

Technical parameters

SM-90120DC

• Drying temperature ：0-60Degree;
• Inner size： 800×1000mm;
• Fan wattage：1KW;
• Heat wattage：3KW;
• Net weight：115KG.

• Drying temperature ：0-60Degree;
• Inner size： 1100×1300mm;
• Fan wattage：1KW;
• Heat wattage：4KW;
• Net weight：135KG.

• Drying temperature ：0-60Degree;
• Inner size： 1400×1800mm;
• Fan Wattage：1KW;
• Heat Wattage：6KW;
• Net weight：168Kg

Works supply

• 3Phase 380V Power supply

Package list

• Outer size:1.20×0.95×1.10m ；
• NET weight: 115KG;

• Package size:1.28×1.02×1.26m ；
• Gross weight: 204KG;
• CBM: 1.645056

H.S.Code

8443198000

Certicate

CE

Plate drying coset //Advantage

Function

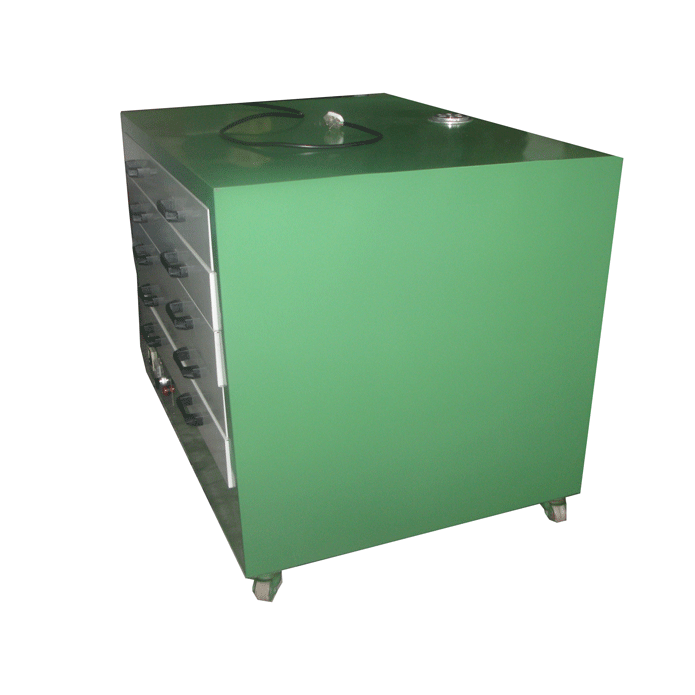

• Galvanized steel sheet welding, high temperature environmental paint;

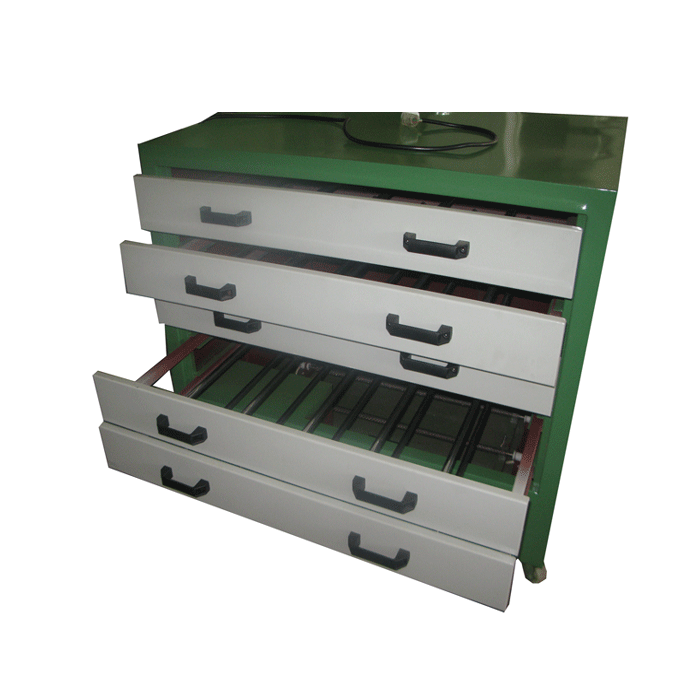

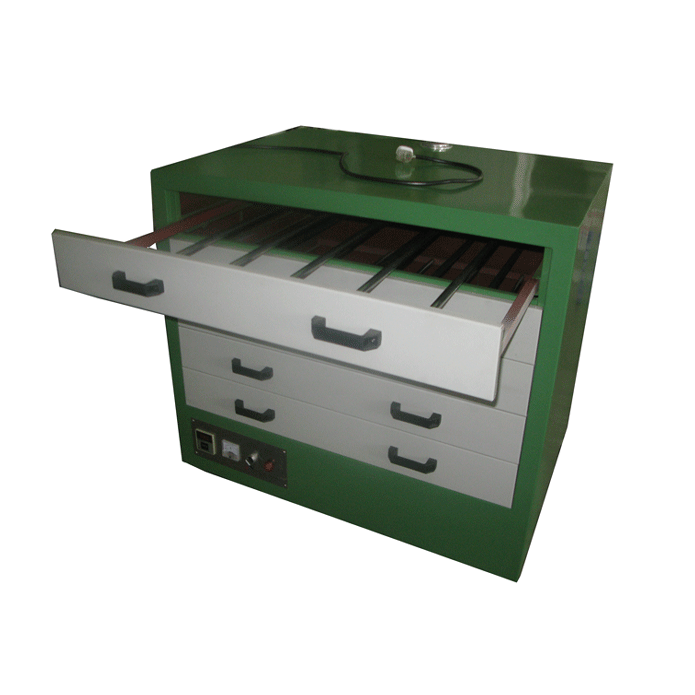

• Drawer structure to facilitate the screen plate of the place and remove;
• layered mesh design, the circular flow of hot air and double-sided drying;
• Asbestos sheet insulation system temperature lasting constant;
• Hot air circulation system to ensure that hot air is distributed evenly throughout the oven to improve the drying efficiency;
• The plane of the screen to place, conducive to the uniformity of photosensitive film layer drying
