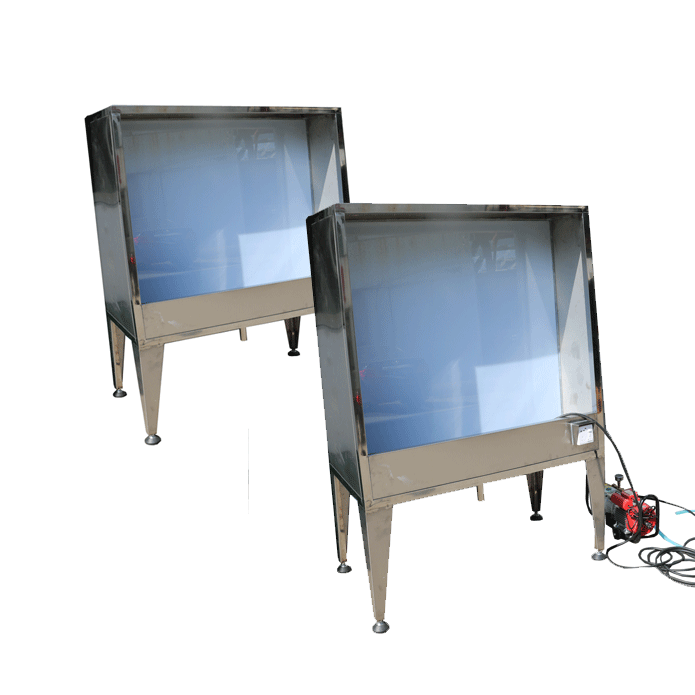

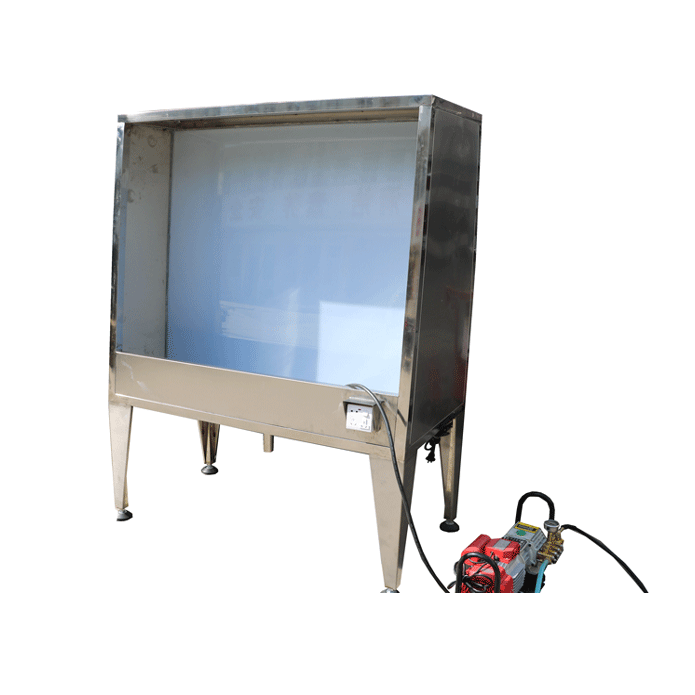

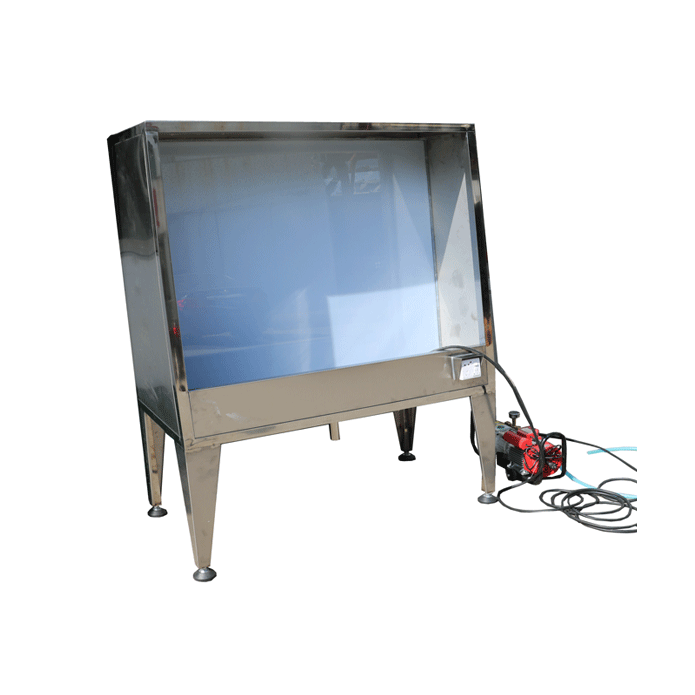

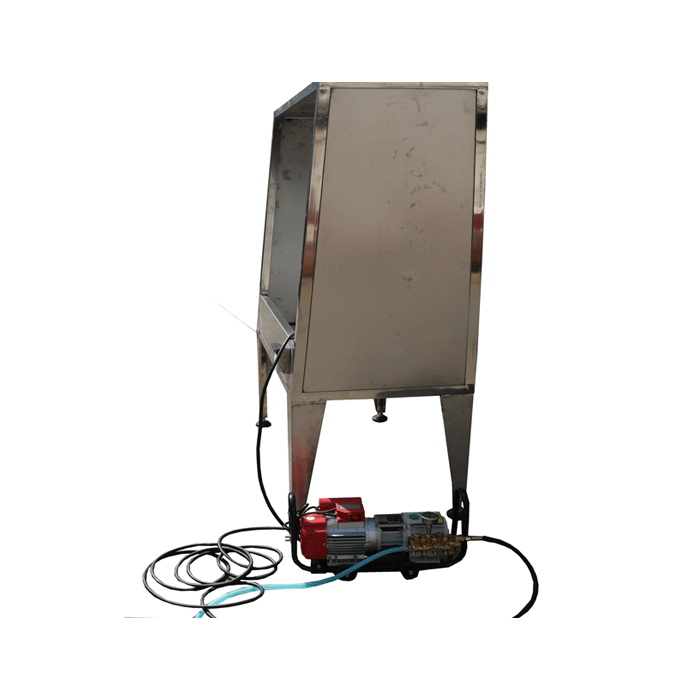

Screen plate high pressure washing machine

  • Product Item: SM-1200MD
  • Category: Plate-making equipment
  • Views: 1077
  • Product Manual:
  • SPECIFICATION
    SM-1200MD screen Plate washing case
    Material & width Stainless,1200mm
    Max screen Plate height 1650mm
    Voltage 220V, 5Pcs daylight lamp
    Water source Tap-water
    Pressure of gun 8kg/cm2
    Usage Washing any types screen plate : Nylon, PET, Stainless silk.In the process of making screen plate.


    Features and Application︰ The screen plate of the developer need to use water cannons to wash, dedicated screen wash the screen placed in the flush to keep the position fixed flush, you can ensure that the screen wash thoroughly. With the SM series Tighten machines, UV exposure machine, drying case, which will help standardize the management of the plate-making workshop.
    Package size︰ 1. Dimension: 1.34×0.76×1.88m
    2. Gross weight; 135KG
    3. 1.915CBM.
    Technical parameters︰ 1.Voltage: 220V;
    2. Water source :Tap-water;
    3.Pressure of gun: 8kg/cm2
    4.Inner size: 1250*1750*450mm;
    5.Glass: 10mm;
    Performance︰ 1. Frame made of stainless steel welding, clean and beautiful;
    2. Background fluorescent lighting, easy to observe the quality of wash;
    3. High-pressure water gun configuration, rinse thoroughly, developing good;
    4 Screen upright wash, easy to operate.
    H.S.Code︰ 8443192190
    Forme Types︰ silk plate
