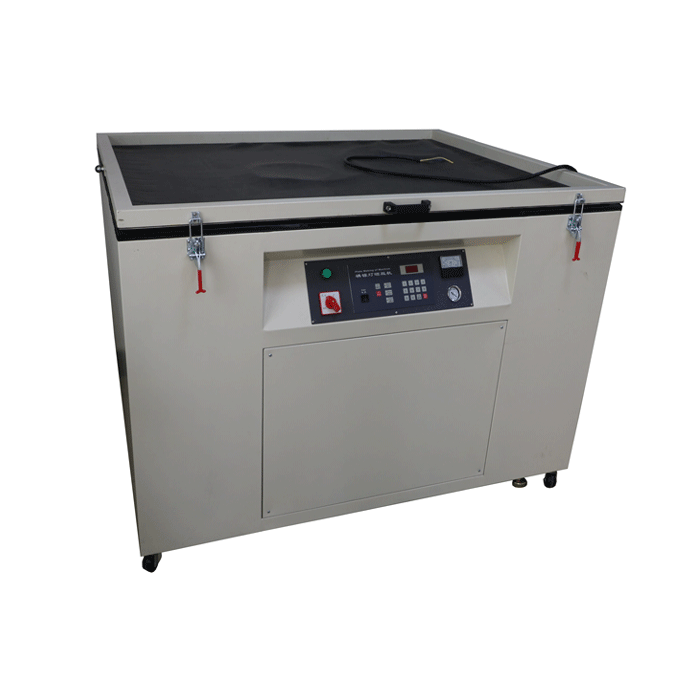

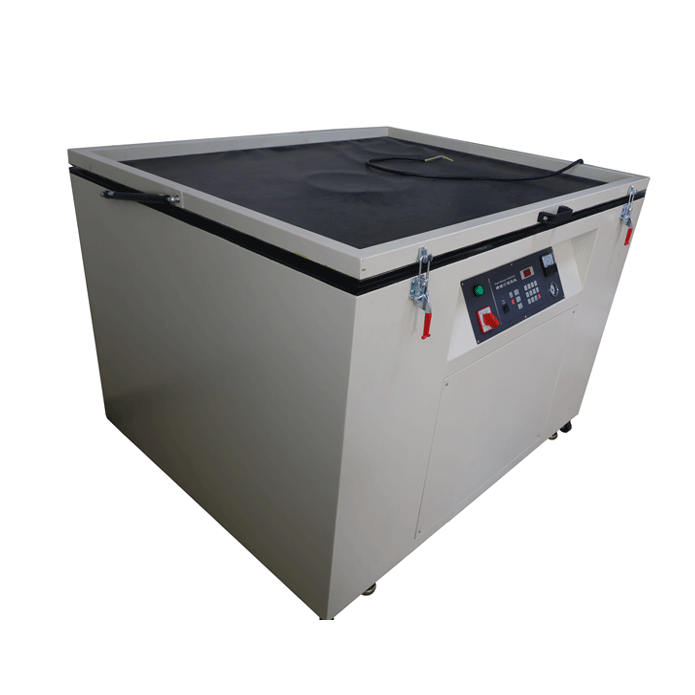

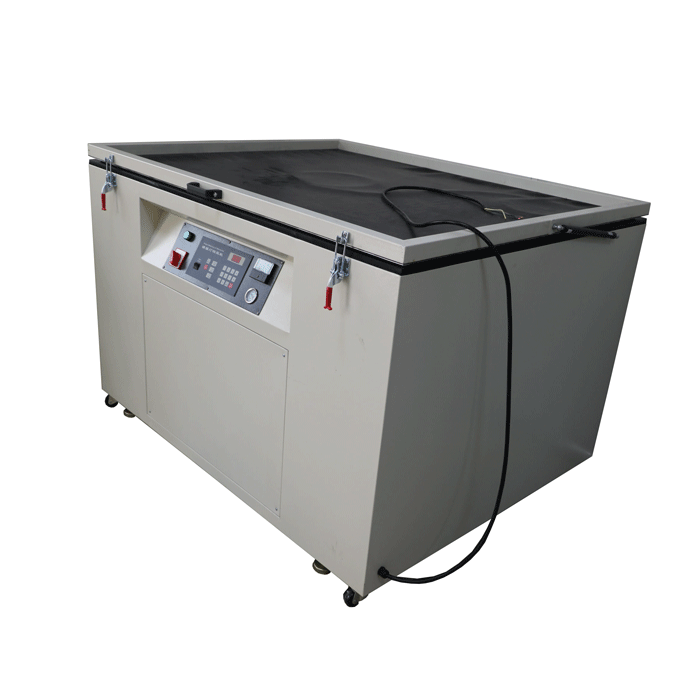

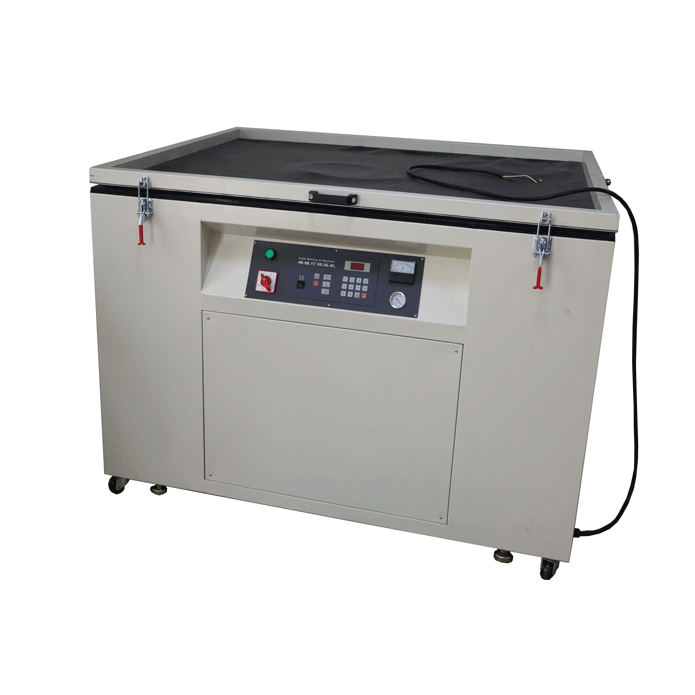

UV Exposure Machine //Usage and characters

Guide

• Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate;
• When you cover the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine;
• This is important process on all plate-making technology. flexibility Rubber Film ensure Film contact compactly with surface of silk when vacuum state.

Application fields

• Nylon silk,;
• PET Silk,
• Stainless steel silk.
•


UV Exposure machine //Parameter

Technical parameters

SM-90120UVEB

• Glass Dimension: 900X1200mm;
• Glass thickness: 10mm.
• Lamp Wattage: 2000W;
• Max Frame dimension: 800×1100mm;
• Exposure Area: 850mm×1150mm;
• Vacuum degree: 0.05mpa;
• Wattage: 80w/cm;
• Lamp distance:750mm；
• Weight:135KG.

• Glass Dimension: 1200X1500mm;
• Glass thickness: 10mm;
• Lamp Wattage: 3000W;
• Max Frame dimension: 1100×1500mm;
• Exposure Area: 1050mm×1550mm;
• Vacuum degree: 0.05mpa;
• Wattage: 80w/cm;
• Lamp distance:750mm；
• Weight:155KG.

• Glass Dimension: 1500X2000mm;
• Glass thickness: 10mm;
• Lamp Wattage: 3000W;
• Max Frame dimension: 1400×1900mm;
• Exposure Area: 1450mm×1950mm;
• Vacuum degree: 0.05mpa;
• Wattage: 100w/cm;
• Lamp distance:750mm；
• Weight:175KG

Works supply

• 1phase 220V or 3Phase 380V Power supply

Package list

• Outer size: 1.28×0.98×0.98m ；
• Net  weight:135 KG

• Package size:1.34×1.03×1.02m ；
• Gross weight:226 KG;
• CBM: 1.136

H.S.Code

8443198000

Certificate

CE

UV Exposure Machine //Advantage

Function

• Choose high quality UV lamp. keep long life;
• Reflect cover made by resist aging materials;
• Whole jointing with zinco plate, both portability and firmly;
• Exposal time auto adjustment and controlling;
• High vacuum degree, easy to transfer and copy fine lines ；
• Automatic door of UV lamp shut off and turn on when exposure and finish ensure long life of UV lamp;
• High toughness Rubber Layer ensure Film closely cover with frame.

Accessories included

• Operation instruction in English 1 pc.
•


UV Exposure machine //Technical support

Printing elements

• Please replace UV lamp after 1000 hours life;
• Please use UV Exposure machine in dark room;
• Please test Exposure machine and get correct parameter before making plate;
• Choose good quality Photosensitive adhesive
