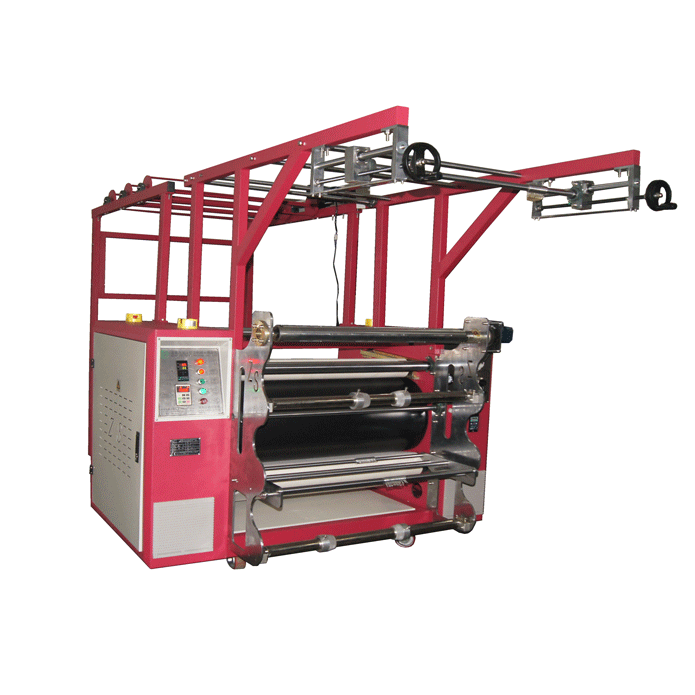

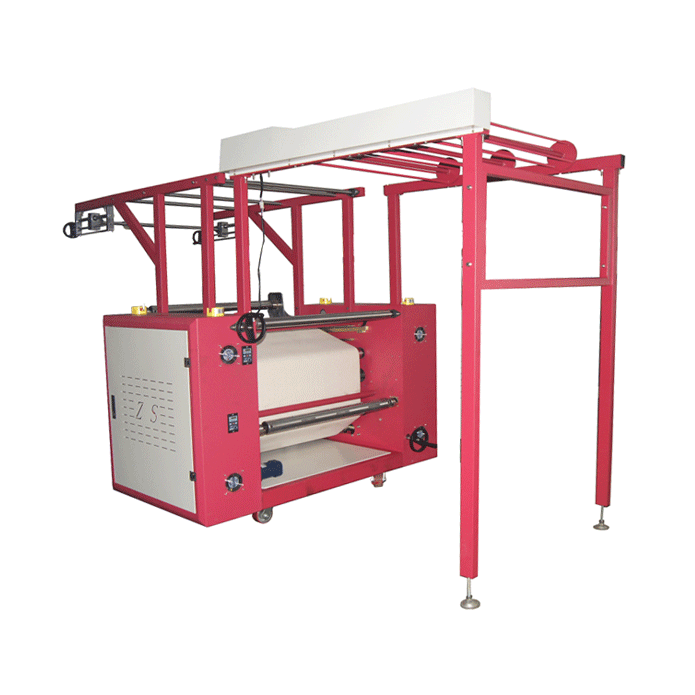

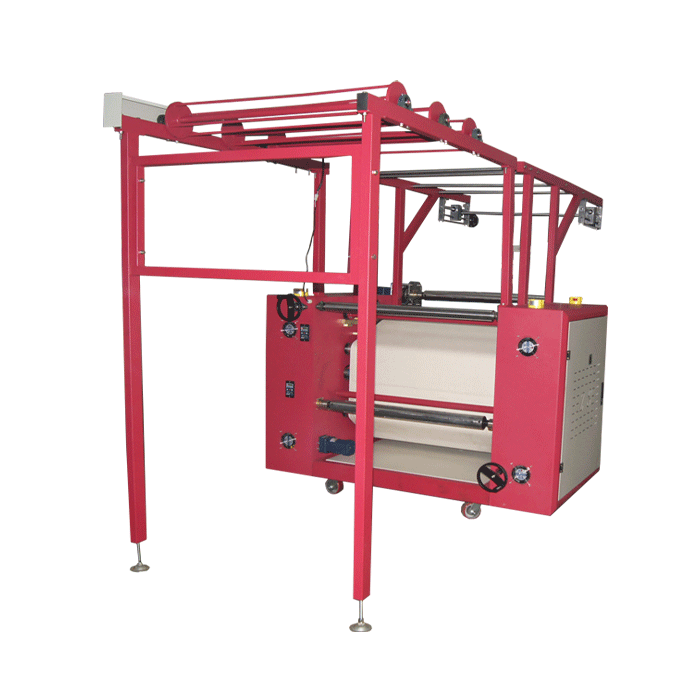

Zipper heat transfer machine AB6190Z

  • Product Item: AB6190Z
  • Category: Zipper heat trasnfer machine
  • Views: 1487
  • Product Manual:
  • SPECIFICATION

    Item NO.:

    AB6190Z

    First name:

    Auto Heat-transfer Machine for Lanyard, Webbing, Label

    Voltage:

    110V/220V/380V

    Dimension:

    Machine: L168*W116*H147cm, Working Table: L200*W130*H190cm

    Color:

    Red or Blue

    Power:

    42KW

    Roller Width:

    900mm

    Roller Diameter:

    610mm

    Temp.Range:

    0-400°C

    Noise:

    30QB

    Speed:

    120-150m/h, 144-180m2/h,1152-1440 m2/d

    Package Size:

    L175*W125*H190cm, cbd:4.16m3

    Packing

    Wooden Box, 1set machine + 1set working table

    Installation size:

    L190*W500*W150cm, cbd: 14.25m3

    N.W.:

    900KG

    G.W:

    1000KG

    Functions
    • Independent welding table, easy to install and remove;
    • Adjustable torque put paper roller, paper conveying stable balance;
    • Anti-pinch device to ensure safe operation;
    • Microcomputer operation panel, simple and reliable;
    • High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
    • Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
    • Brand conductive oil, heat stable and uniform;
    • Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
    • Brand electrical components, long life, low failure rate;
    • PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independently flexible adjustment;
    • Independent blanket correction structure;
    • Special small diameter roller design, machine covers an area of small;
    • Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
