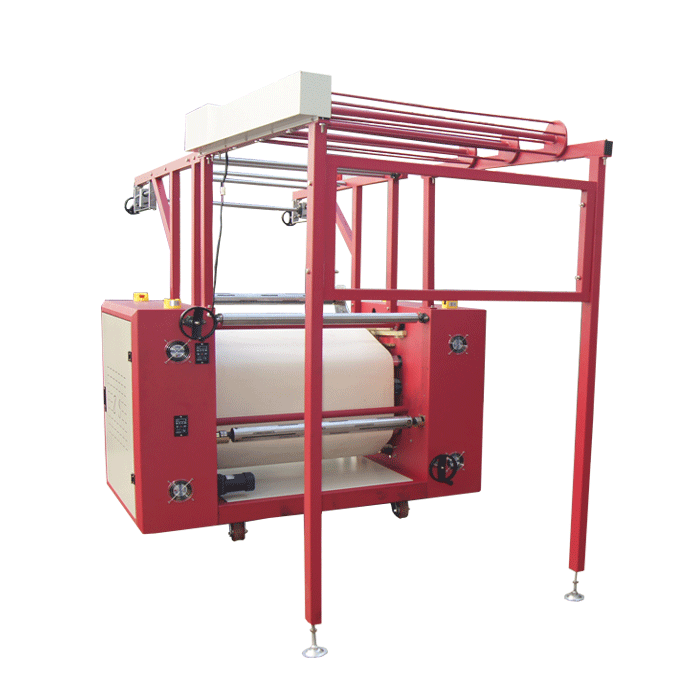

Zipper heat sublimation transfer machine

Product Item: AB-4260Z

Product Manual：

SPECIFICATION

Item NO.:	AA4260Z
First name:	multipurpose digital ribbon printing machine
Voltage:	110V/220V/380V
Power:	12KW
Roller Width:	420mm
Roller Diameter:	610mm
Temp.Range:	0-400°C
Noise:	30QB
Speed:	150-450meters
Package Size:	100X120X145cm
installation size:	350X190X200cm
Weight:	620KG
G.W:	700KG

Independent welding table, easy to install and remove;

Adjustable torque put paper roller, paper conveying stable balance;

Anti-pinch device to ensure safe operation;

Microcomputer operation panel, simple and reliable;

High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;

Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;

Brand conductive oil, heat stable and uniform;

Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;

Brand electrical components, long life, low failure rate;

PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independently flexible adjustment;

Independent blanket correction structure;

Special small diameter roller design, machine covers an area of small;

Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
