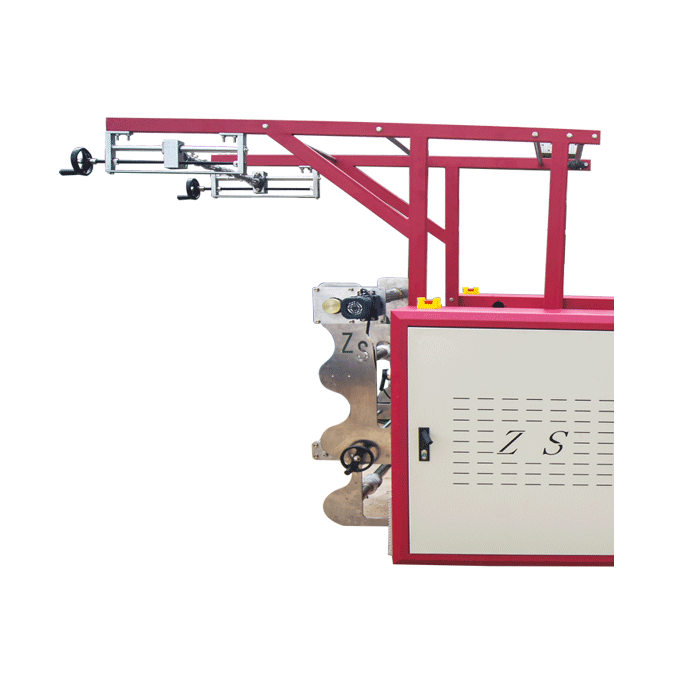

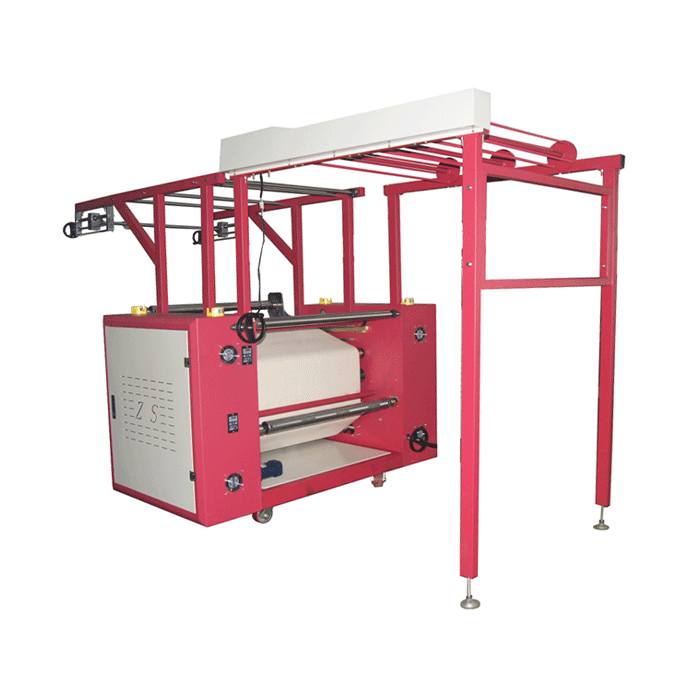

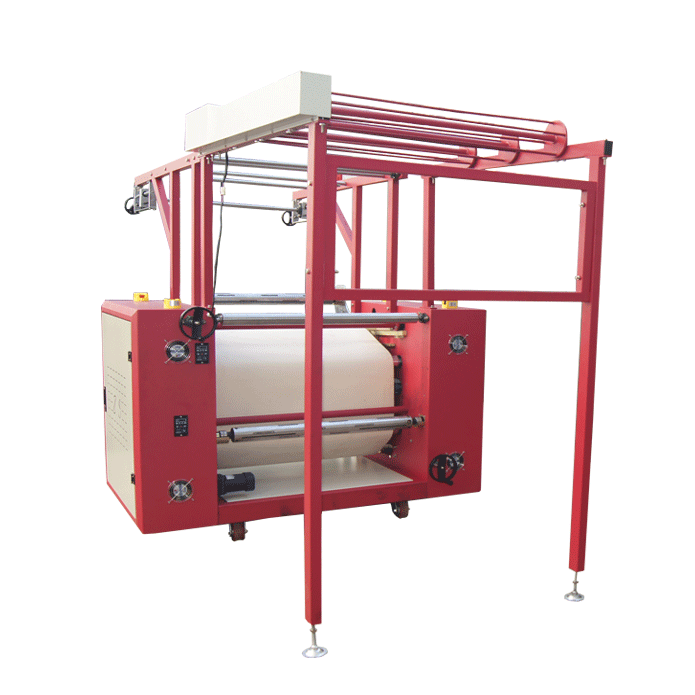

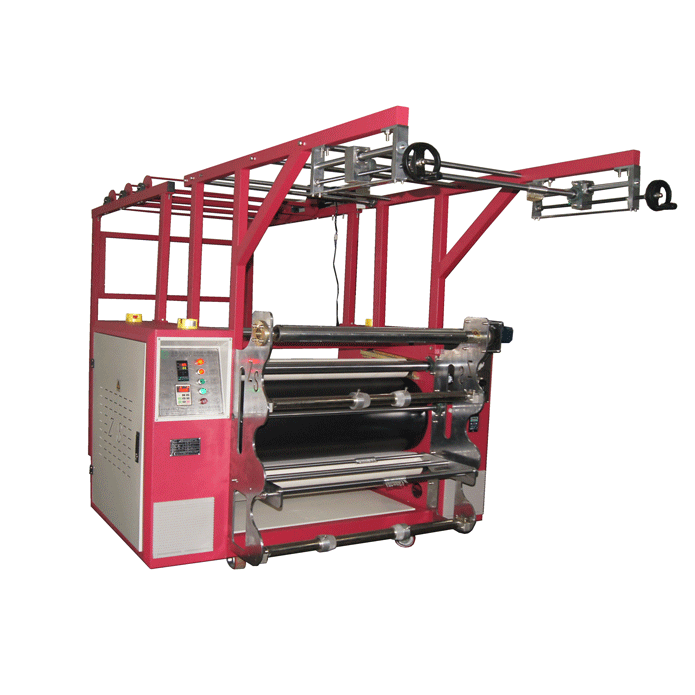

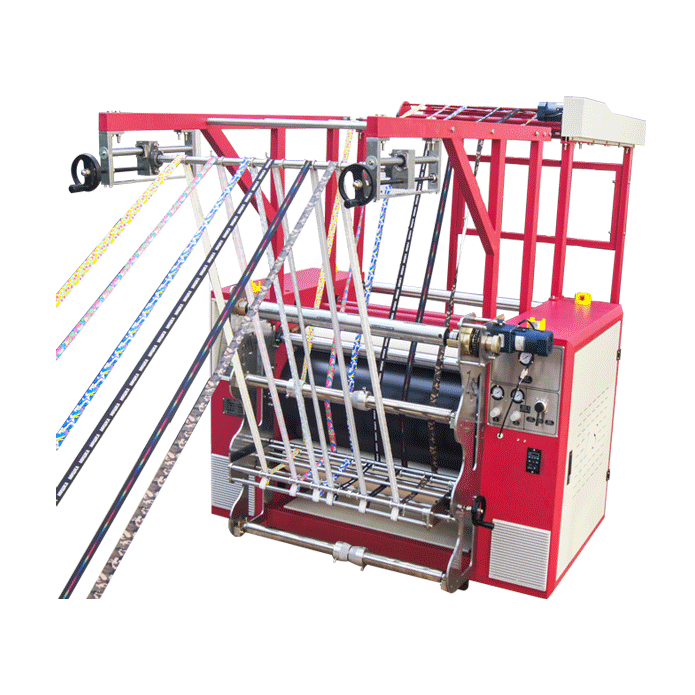

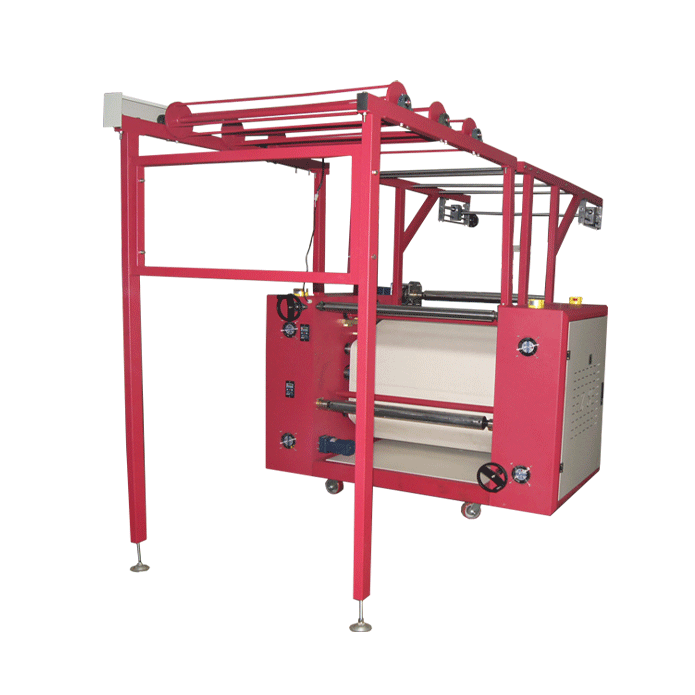

Zipper heat transfer machine AB4290Z

Product Item: AB4290Z

Product Manual：

SPECIFICATION

Item NO.:	AB4290Z
First name:	Auto Heat-transfer Machine for Lanyard, Webbing, Label
Voltage:	110V/220V/380V
Dimension:	Machine: L168W116H147cm, Working Table: L200W130H190cm
Color:	Red or Blue
Power:	42KW
Roller Width:	900mm
Roller Diameter:	420mm
Temp.Range:	0-400°C
Noise:	30QB
Speed:	120-150m/h, 144-180m2/h,1152-1440 m2/d
Package Size:	L175W125H190cm, cbd:4.16m3
Packing	Wooden Box, 1set machine + 1set working table
Installation size:	L190W500W150cm, cbd: 14.25m3
N.W.:	900KG
G.W:	1000KG

Functions

Independent welding table, easy to install and remove; Adjustable torque put paper roller, paper conveying stable balance; Anti-pinch device to ensure safe operation; Microcomputer operation panel, simple and reliable; High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good; Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small; Brand conductive oil, heat stable and uniform; Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient; Brand electrical components, long life, low failure rate; PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independently flexible adjustment; Independent blanket correction structure; Special small diameter roller design, machine covers an area of small; Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.

Independent welding table, easy to install and remove;
Adjustable torque put paper roller, paper conveying stable balance;
Anti-pinch device to ensure safe operation;
Microcomputer operation panel, simple and reliable;
High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
Brand conductive oil, heat stable and uniform;
Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
Brand electrical components, long life, low failure rate;
PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independently flexible adjustment;
Independent blanket correction structure;
Special small diameter roller design, machine covers an area of small;
Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
